Product Detailed Parameters

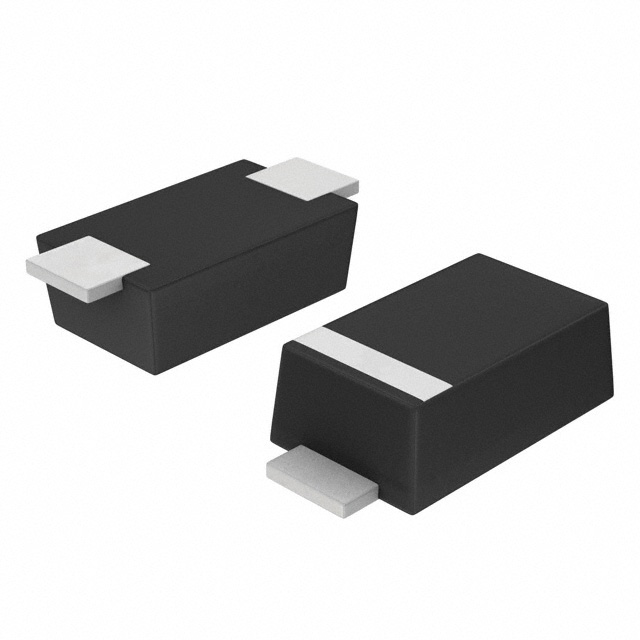

- Description：DIODE SCHOTTKY 100V 2A SOD123F
- Series：-
- Mfr：Comchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：2A
- Voltage - Forward (Vf) (Max) @ If：830 mV @ 2 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 100 V
- Capacitance @ Vr, F：60pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：SOD-123F
- Supplier Device Package：SOD-123F
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview
The ACDBMS2100-HF is a single-element Schottky barrier rectifier manufactured by Comchip Technology. It features a silicon epitaxial planar chip with metal-silicon junction construction, housed in an SOD-123F-2 surface-mount package. The device supports a forward current of 2 A and a repetitive peak reverse voltage of 100 V. Key electrical characteristics include a maximum forward voltage of 830 mV at rated current, a reverse leakage current of 200 uA, and an operating temperature range from -55°C to +150°C.
Feature Summary
- Low profile SMD package design optimized for board space efficiency
- High efficiency operation with low forward voltage drop
- Guarding capability for overvoltage protection scenarios
- Ultra-high-speed switching performance
Applications
- Automotive electronics systems requiring AEC-Q101 compliance
- DC-DC converter circuits
- Power supply rectification modules
- General purpose freewheeling diode applications
Procurement Notes
Verify the specific suffix designation against official manufacturer documentation to confirm exact electrical tolerances and packaging configurations. Ensure that the ordering information matches the required automotive qualification standards and RoHS compliance status before finalizing procurement orders.
Selection Notes
Select this component when a compact surface-mount Schottky rectifier is needed for high-efficiency power conversion. The 2 A rating and 100 V blocking voltage suit low-to-medium power applications. Consider the SOD-123F-2 footprint constraints and thermal management requirements relative to the ambient operating environment.
Part Context
This part belongs to Comchip Technology's ACDBMS series of automotive-grade Schottky diodes. The series utilizes silicon technology to provide reliable performance in demanding environments. The product line emphasizes low power loss and high surge capability for robust circuit protection.
Replacement Considerations
Consult official substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameter equivalence before replacing the original component in existing designs.
