Product Detailed Parameters

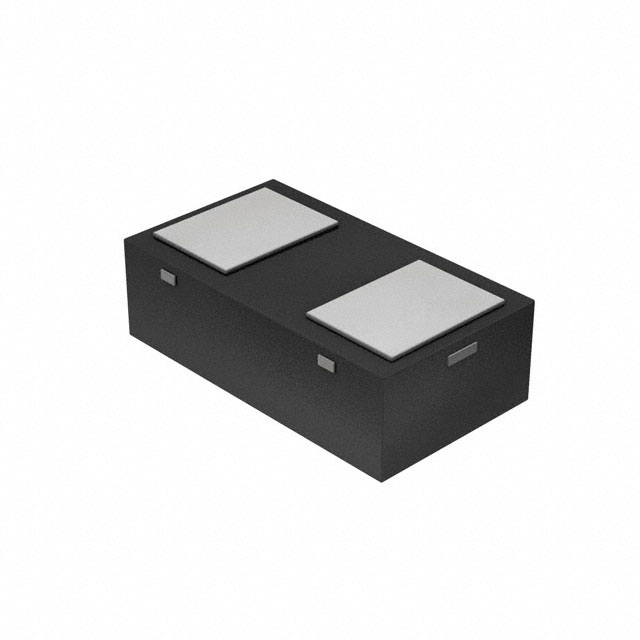

- Description：DIODE SCHOTTKY 70V 70MA 0402C
- Series：-
- Mfr：Comchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：70 V
- Current - Average Rectified (Io)：70mA
- Voltage - Forward (Vf) (Max) @ If：1 V @ 15 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：5 ns
- Current - Reverse Leakage @ Vr：100 nA @ 50 V
- Capacitance @ Vr, F：2pF @ 1V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：0402 (1006 Metric)
- Supplier Device Package：0402C/SOD-923F
- Operating Temperature - Junction：-65°C ~ 125°C
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview
The ACDBQC70-HF is a surface-mount Schottky barrier diode manufactured by Comchip Technology. It features a 70 V repetitive reverse voltage rating and a 70 mA forward current capability. The device utilizes an SOD-923F (0402C) package, designed for compact circuit layouts. It is qualified under the AEC-Q101 standard for automotive reliability. Key electrical characteristics include a maximum forward voltage of 500 mV at specified currents and a low reverse leakage current of 40 uA. The component operates within a temperature range from -55 C to +150 C.
Feature Summary
- Automotive-grade qualification compliant with AEC-Q101 standards
- Low-profile SOD-923F surface-mount packaging for space-constrained designs
- Schottky barrier technology ensuring fast switching performance
Applications
- High-voltage protection in vehicle power systems
- Automotive electronic circuit rectification
- General-purpose surface-mount rectification applications
Procurement Notes
Verify the specific datasheet revision and AEC-Q101 certification status directly with Comchip Technology or authorized distributors before integration. Confirm that the SOD-923F footprint matches the target PCB design. Ensure supply chain sources are authorized to guarantee component authenticity and traceability for automotive compliance requirements.
Selection Notes
Select this component when a small-form-factor Schottky diode is required for automotive environments. The 70 V rating suits low-voltage DC bus protection. Consider the 70 mA current limit for signal-level or low-power rectification tasks. The wide operating temperature range supports harsh automotive conditions. Verify thermal management needs against the small package dissipation capabilities.
Part Context
This part belongs to Comchip Technology's automotive diode portfolio, specifically the ACDBQC series. These components are engineered for high reliability in automotive electronics. The SOD-923F package allows for automated assembly in dense PCB layouts. The series emphasizes robustness against transient events common in vehicle electrical systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 70 V reverse voltage, 70 mA forward current, SOD-923F package, and AEC-Q101 qualification independently.
