ACGRTS4001-HF

Single Diodes Overview

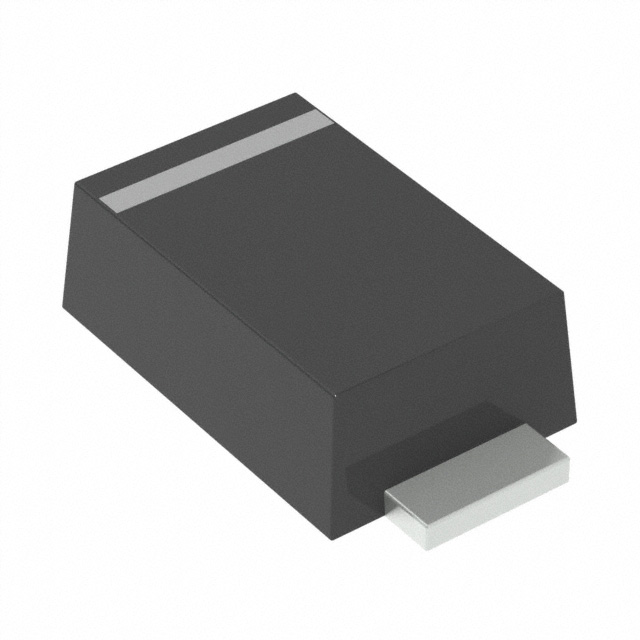

The ACGRTS4001-HF is a surface-mount general-purpose rectifier manufactured by Comchip Technology. It features a silicon single diode configuration housed in the DO-214AC (SMA) package. The device supports an average forward rectified current of 1A and withstands a maximum repetitive peak reverse voltage of 50V. Key electrical characteristics include a maximum non-repetitive peak forward surge current of 30A, a maximum DC forward voltage drop of 1.1V at rated current, and a maximum reverse leakage current of 5μA at full rated voltage. The component operates within a junction temperature range of -55°C to +150°C.

Single Diodes Feature Summary

• Provides reliable rectification for general-purpose applications using standard silicon technology.
• Engineered with a compact SMA surface-mount footprint for automated assembly integration.
• Capable of handling high transient surge currents up to 30A for circuit protection.

Single Diodes Applications

• DC power supply input rectification stages
• General-purpose freewheeling diodes in low-voltage circuits
• Reverse polarity protection in consumer electronics

Single Diodes Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm the SMA package and 50V rating. Ensure the suffix matches the required RoHS compliance status. Cross-reference datasheets from authorized distributors to validate the exact electrical parameters before finalizing procurement specifications.

Single Diodes Selection Notes

Select this component when a 1A current rating and 50V blocking voltage are sufficient for the application. The SMA package offers a balance between current handling and board space efficiency. Consider the 1.1V forward voltage drop for thermal management calculations in low-voltage designs.

Single Diodes Part Context

This rectifier belongs to Comchip Technology's line of surface-mount general-purpose diodes. These components are designed to replace through-hole equivalents in modern PCB layouts. The series provides standardized performance for basic power conversion tasks across various industrial and consumer electronic sectors.

Single Diodes Replacement Considerations

The CGRA4001-G is a documented equivalent variant from the same manufacturer offering identical functional specifications and package type.
