Product Detailed Parameters
- Description：LED CYAN ROUND SMD
- Series：-
- Mfr：Broadcom Limited
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：-
- Configuration：-
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：-
- Lens Style：-
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：-
- Current - Test：-
- Viewing Angle：-
- Mounting Type：-
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：-
- Height (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

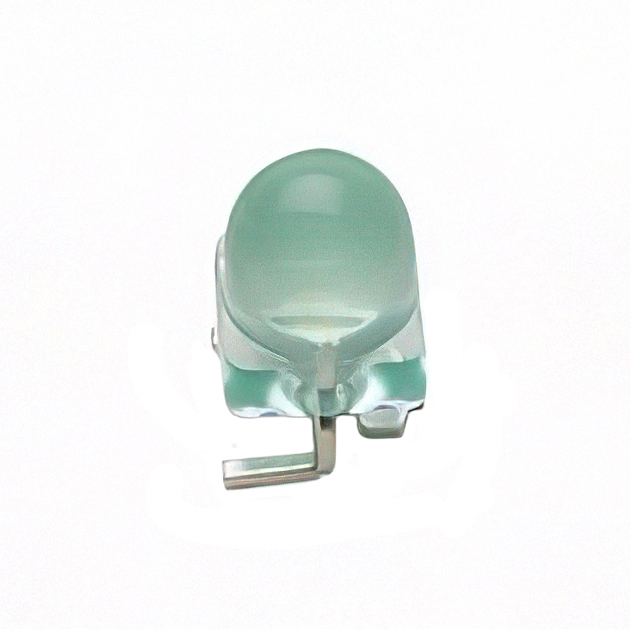

The AEMD-CE3L-XZ002 is a single-color cyan LED from the AEMD series, manufactured by Broadcom Limited. It features a round lens shape with diffused transparency and is designed for surface-mount (SMD/SMT) installation. The component emits light at a viewing angle of 30 degrees. Key electrical parameters include a forward current of 20 mA and a forward voltage of 2.1 V. The optical intensity is rated at 7200 mcd. The device operates within a temperature range of -40°C to +85°C and has a power rating of 120 mW. It is supplied in tape and reel packaging.
Feature Summary
- Surface-mount design suitable for automated assembly processes
- Cyan emission color with diffused lens for broad visibility
- High optical intensity output for clear indication
- Compliant with RoHS3 standards
Applications
- Panel status indicators
- Equipment front-panel signaling
- Consumer electronics status lights
- Industrial control system displays
Procurement Notes
Verify the specific ordering suffix XZ002 to ensure correct lens transparency and binning specifications. Confirm moisture sensitivity level (MSL 3) handling requirements during storage and reflow soldering. Check lead times as production cycles may vary. Ensure compatibility with standard SMD reflow profiles. Validate that the 20 mA forward current rating aligns with the target circuit design constraints.
Selection Notes
Select this component when a high-intensity cyan indicator is required for surface-mount applications. The 30-degree viewing angle provides focused visibility compared to wider-angle alternatives. Consider the 4.2 mm x 4.2 mm footprint for PCB layout constraints. The diffused lens offers uniform light distribution. Evaluate thermal management needs given the 120 mW power rating and operating temperature range up to 85°C.
Part Context
This part belongs to the AEMD family of low-cost SMT lamps from Broadcom Limited. The series offers various colors and lens shapes including oval and round configurations. The CE3L designation specifically identifies the cyan color variant within this product line. These components are designed for general-purpose indication tasks where cost-effectiveness and reliability are prioritized.
Replacement Considerations
Direct substitutes within the same series include AEMD-CE3L-XZQ02, which shares similar physical and electrical characteristics. Verify pinout compatibility and mechanical dimensions before substitution. Cross-reference datasheets for any updates in forward voltage or intensity bins.
