AL3020A-ZGN-020MA

LED Indication - Discrete Overview

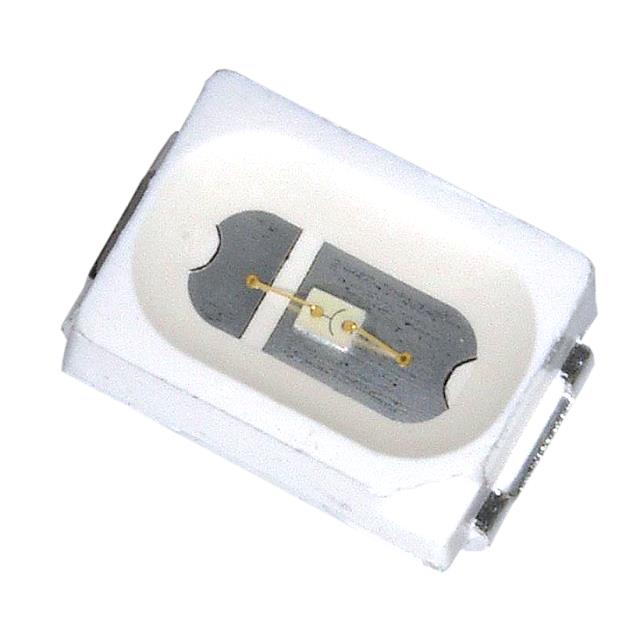

The AL3020A-ZGN-020MA is a green surface-mount LED from Solidlite, housed in a 3020 package. It features an oval lens with a flat top and a viewing angle of 115 degrees. The component operates at a typical forward voltage of 2.8V to 3.25V with a test current of 20mA. It utilizes a 2-SMD J-Lead configuration with dimensions of 1.90mm x 0.90mm for the lens area.

LED Indication - Discrete Feature Summary

• Green light emission with high visibility
• Oval lens design with flat top profile
• Wide 115-degree viewing angle
• RoHS compliant construction

LED Indication - Discrete Applications

• Indicator lights in electronic devices
• Status indication on control panels
• Visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific bin code or wavelength range required for your application, as green LEDs can vary in shade. Confirm that the 2.8V to 3.25V forward voltage range aligns with your circuit's power supply capabilities. Ensure the 20mA operating current is supported by your driving source to prevent damage or dim output.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator is needed for space-constrained designs. The 3020 package offers a balance between size and brightness. Consider the 115-degree viewing angle for applications requiring broad visibility. Verify compatibility with automated pick-and-place equipment due to the J-lead form factor.

LED Indication - Discrete Part Context

This part belongs to Solidlite's 3020 series of surface-mount LEDs. The series includes various colors and package sizes, such as the 0402 and 3020 formats. The ZGN suffix typically denotes a green color variant within this product line, distinguishing it from white or other colored options like the HWR series.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 3020 green SMD LEDs only if pinout and electrical characteristics match exactly.
