AL455SA-WRL

LED Indication - Discrete Overview

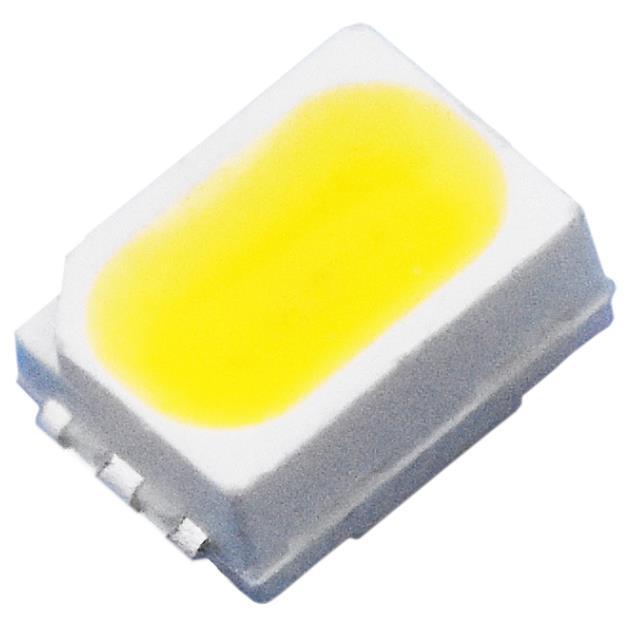

The AL455SA-WRL is a surface-mount LED indicator manufactured by Solidlite. It features a warm white color output and operates at a test current of 20mA. The component utilizes a strip packaging format for automated assembly processes. It offers a viewing angle of 115 degrees, ensuring broad light dispersion. The device is currently in active production status, suitable for integration into electronic circuits requiring discrete visual indication.

LED Indication - Discrete Feature Summary

• Surface mount construction for automated PCB assembly
• Warm white light emission characteristics
• Wide 115-degree viewing angle for visibility

LED Indication - Discrete Applications

• Electronic equipment status indication
• Panel board signaling
• Consumer appliance indicators

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact binning and packaging configuration required for your production line. Ensure that the supplier provides traceability documentation matching the manufacturer's specifications. Confirm the component's active status with the distributor prior to placing orders to avoid supply chain disruptions.

LED Indication - Discrete Selection Notes

Select this component when a surface-mount solution with a wide viewing angle is required. The warm white color option distinguishes it from standard cool white variants. Consider the 20mA test current rating when designing the limiting resistor network to ensure optimal brightness without exceeding thermal limits.

LED Indication - Discrete Part Context

This part belongs to Solidlite's discrete LED indicator series. These components are designed for general-purpose visual signaling in various electronic applications. The manufacturer specializes in LED technologies for diverse sectors including lighting and sensing.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 3020 package warm white LEDs from different manufacturers if supply constraints exist. Verify pinout compatibility and forward voltage characteristics before substituting.
