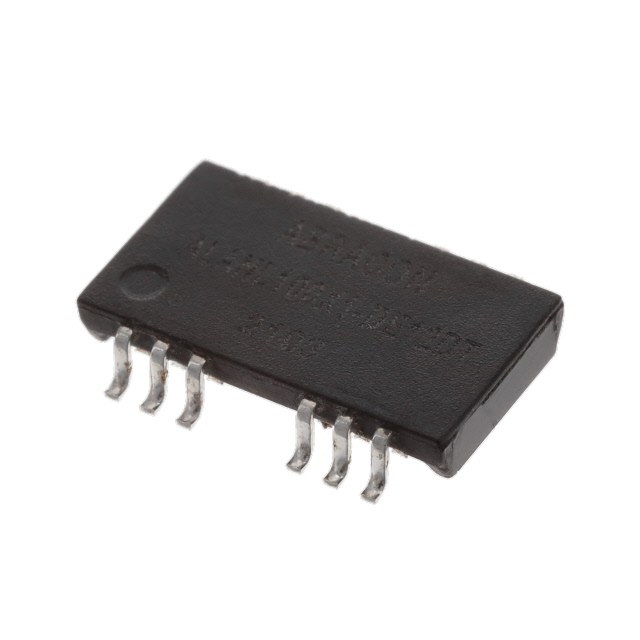

ALANL100X1-DE12DT

$1.96

Description：XFRMR LAN 1CT:1CT 350UH
Series：ALANL100X1-D
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8e23528eed4b Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ALANL100X1-DE12DT is listed in the Pulse Transformers range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is XFRMR LAN 1CT:1CT 350UH. Review the specifications below when checking this part for your BOM.

Pulse Transformers specifications for ALANL100X1-DE12DT

Description：XFRMR LAN 1CT:1CT 350UH
Series：ALANL100X1-D
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)：0.085" (2.16mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Pulse Transformers datasheet and documents for ALANL100X1-DE12DT

ALANL100X1-DE12DT

Pulse Transformers Overview

The ALANL100X1-DE12DT is a shielded, dual-channel LAN transformer module designed for 10/100 Base-TX Ethernet applications. It features an SMD/SMT termination type and operates within a temperature range of -40°C to +85°C. The component has physical dimensions of 12.7mm x 7.11mm x 1.98mm with 12 pins. Key electrical specifications include an inductance of 350µH and a turns ratio of 1CT:1CT for both transmitter and receiver channels.

Pulse Transformers Feature Summary

Shielded dual-channel design for noise reduction
Low profile surface mount package
Optimized for 10/100 Base-TX Ethernet standards

Pulse Transformers Applications

10/100 Base-TX Ethernet network interfaces
LAN port signal conditioning
Industrial communication modules

Pulse Transformers Procurement Notes

Verify the specific manufacturer datasheet for complete electrical characteristics and mechanical drawings. Confirm that the 12-pin SMD configuration matches your PCB footprint requirements. Ensure the operating temperature range of -40°C to +85°C meets your environmental constraints. Check for RoHS compliance details if required by your manufacturing standards.

Pulse Transformers Selection Notes

Select this component when a low-profile, shielded transformer is required for 10/100 Mbps Ethernet connections. The 12-pin SMD format suits space-constrained designs. Verify compatibility with your PHY chip's pinout and impedance requirements. Consider the thermal performance within the specified -40°C to +85°C range for your application environment.

Pulse Transformers Part Context

This part belongs to the ALANL100X1 series of low-profile LAN transformers from Abracon. These modules are engineered for reliable signal integrity in Ethernet applications. The series offers various pin configurations and mounting options to accommodate different board layouts and design requirements.
