ALMD-CM3D-WY002

LED Indication - Discrete Overview

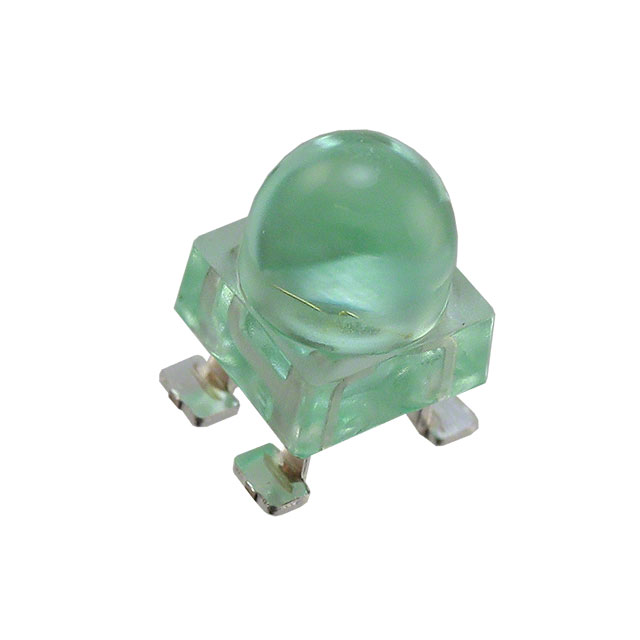

The ALMD-CM3D-WY002 is a single-color green surface-mount LED from the Broadcom ALMD-xx3D series. It features a round, tinted non-diffused lens with a 30-degree viewing angle and emits at a peak wavelength of 516 nm. The component operates with a forward current of 20 mA and a typical forward voltage of 3.2 V. It utilizes an InGaN material system for high brightness and is housed in a compact 4-SMD (gull-wing) package measuring 4.2 mm x 4.2 mm.

LED Indication - Discrete Feature Summary

• High luminous intensity suitable for outdoor signage applications
• Advanced optical grade epoxy construction for superior performance
• Compatible with industrial reflow soldering processes
• Shipped in EIA-compliant tape and reel for uniformity

LED Indication - Discrete Applications

• Outdoor sign applications
• Industrial indicator lighting
• High-brightness visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix WY002 against official datasheets to confirm lens tint and diffusion characteristics, as variations exist within the ALMD-CM3D family. Ensure compatibility with standard SMT reflow profiles and check moisture sensitivity level requirements during storage and handling prior to assembly.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high-brightness green indication with a narrow beam profile. The 30-degree viewing angle and tinted lens provide focused visibility. Consider the 3.2 V forward voltage drop when designing drive circuits and ensure adequate thermal management for continuous operation at rated currents.

LED Indication - Discrete Part Context

This part belongs to the ALMD-xx3D series, which includes red, amber, green, and blue variants. The series is designed for high-brightness performance using advanced materials like AlInGaP and InGaN. These LEDs are engineered for reliability in demanding environments, offering consistent color and intensity binning across production reels.

LED Indication - Discrete Replacement Considerations

Cross-reference with other ALMD-CM3D variants such as ALMD-CM3D-XZ002 or ALMD-CM3D-TY202 if different lens tints or intensities are required. Verify pinout compatibility and electrical parameters before substitution.
