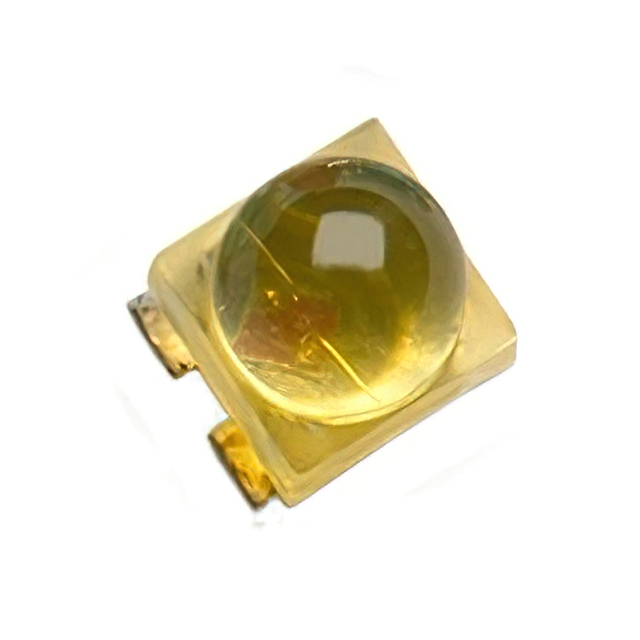

ALMD-EL3D-WY002

$1.15

Description：LED AMBER CLEAR 4SMD
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8270941eed9a Category: LED Indication - Discrete Brand: Broadcom Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ALMD-EL3D-WY002 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is LED AMBER CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for ALMD-EL3D-WY002

Description：LED AMBER CLEAR 4SMD
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Amber
Configuration：-
Lens Color：-
Lens Transparency：Clear
Millicandela Rating：8750mcd
Lens Style：Round with Domed Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：30°
Mounting Type：Surface Mount
Wavelength - Dominant：590nm
Wavelength - Peak：594nm
Features：-
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-SMD
Size / Dimension：4.20mm L x 4.20mm W
Height (Max)：7.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for ALMD-EL3D-WY002

ALMD-EL3D-WY002

LED Indication - Discrete Overview

The ALMD-EL3D-WY002 is a single-color amber LED lamp from the Broadcom ALMD series, designed for surface-mount technology (SMT) applications. It features a round AlInGaP lens with a non-diffused finish and a 4.2 mm x 4.2 mm footprint. The component emits light at a peak wavelength of 590 nm with a viewing angle of 30 degrees. Key electrical parameters include a forward voltage of 2.1 V and a forward current of 20 mA, resulting in a power rating of 120 mW. It delivers an optical intensity of 5.5 cd and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Utilizes AlInGaP material for high-intensity amber emission
Features a non-diffused round lens for focused light projection
Designed for automated SMT assembly processes
Complies with RoHS standards for environmental safety

LED Indication - Discrete Applications

Status indication in electronic equipment
Instrument panel lighting
Automotive interior signaling
Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required lens transparency and color specifications. Confirm moisture sensitivity level (MSL) handling requirements during storage and reflow soldering. Check current lifecycle status as components may transition to end-of-life. Ensure supply chain sources provide authentic Broadcom Limited products to avoid counterfeit risks. Review datasheet thermal dissipation guidelines for reliable operation.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-brightness amber indicator is required for space-constrained designs. Consider the 30-degree viewing angle for directional visibility needs. Evaluate the 2.1 V forward voltage against available drive circuits. Compare physical dimensions against PCB silkscreen constraints. Assess thermal management capabilities given the 120 mW power rating.

LED Indication - Discrete Part Context

This part belongs to the ALMD family of surface-mount LEDs from Broadcom Limited. The series offers various colors and lens configurations for diverse industrial and consumer applications. Broadcom provides comprehensive technical documentation and ECAD models to support design integration. The product line emphasizes reliability and consistent optical performance across manufacturing batches.
