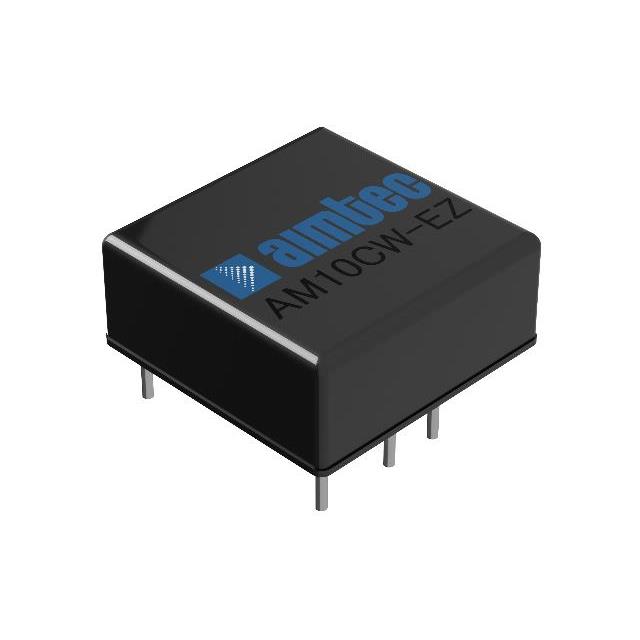

AM10CW-2412DEZ

AM10CW-2412DEZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 9~36VDC 12V -0.415A 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM10CW-2412DEZ

• Description：9~36VDC 12V -0.415A 10W
• Series：AM10CW-EZ (10W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：415mA, 415mA
• Power (Watts)：10 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.42" H (25.4mm x 25.4mm x 10.7mm)
• Supplier Device Package：6-DIP Module
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1
• Grade：-
• Qualification：-
