AM23CGCK-F

LED Indication - Discrete Overview

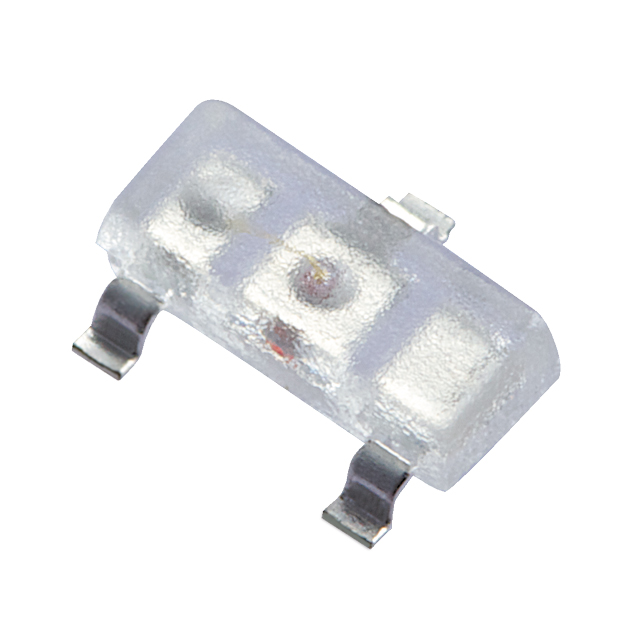

The AM23CGCK-F is a surface-mount green LED from Kingbright, housed in a SOT-23-3 package. It emits light at a peak wavelength of 574 nm with a dominant wavelength of 570 nm. The component features a typical forward voltage of 2.1 V and an intensity of 50 mcd when tested at 20 mA. Dimensions are 3.00 mm in length, 1.40 mm in width, and 1.20 mm in maximum height. It offers a viewing angle of 170 degrees and has a moisture sensitivity level of 3.

LED Indication - Discrete Feature Summary

• SOT-23-3 surface mount package for compact circuit board integration
• Green emission with clear lens for high visibility indication
• Wide 170-degree viewing angle for broad visual coverage

LED Indication - Discrete Applications

• Status indication on electronic devices
• Power supply status indicators
• Microcontroller activity signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct packaging type matches production requirements. Confirm RoHS3 compliance status prior to finalizing procurement orders. Check moisture sensitivity handling procedures if storage conditions exceed specified limits. Ensure the supplier provides valid datasheets matching the exact part number variant.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a low-profile green indicator in space-constrained designs. The SOT-23-3 footprint allows for dense PCB layouts. Consider the 170-degree viewing angle for visibility requirements. Verify that the 2.1 V forward voltage aligns with the driving circuit's output capabilities.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AM23 series of single-color surface-mount LEDs. The series utilizes standard SOT-23 packages suitable for automated assembly processes. The product line focuses on providing reliable optical components for consumer electronics and industrial control panels.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Kingbright SOT-23 green LEDs such as AM23SGC-F or AM23SCC-F, provided wavelength and intensity specifications meet design requirements.
