Product Detailed Parameters

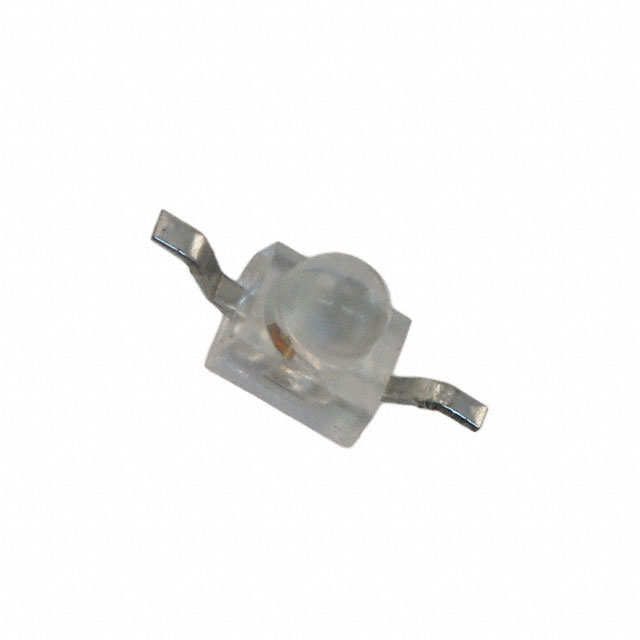

- Description：LED RED CLEAR SMD BOTTOM ENT
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：50mcd
- Lens Style：Round with Domed Top
- Lens Size：1.90mm Dia
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：20°
- Mounting Type：Surface Mount, Bottom Entry
- Wavelength - Dominant：617nm
- Wavelength - Peak：627nm
- Features：-
- Package / Case：2-SMD, Z-Bend
- Supplier Device Package：SMD
- Size / Dimension：2.50mm L x 2.00mm W
- Height (Max)：2.90mm
- Grade：-
- Qualification：-
Download product information
Overview
The AM2520EC09 is a single-color red LED from the Kingbright KM2520 series, designed for surface-mount technology. It features a water-clear dome lens with a peak wavelength of 625 nm and emits 70 mcd of light intensity at a forward current of 20 mA. The component operates within a voltage range of 2 V forward voltage and dissipates up to 75 mW of power. It supports an operating temperature range from -40°C to +85°C and complies with RoHS standards.
Feature Summary
- Utilizes a compact SMD-2 package suitable for automated surface mounting processes.
- Features a water-clear dome lens shape to direct light output effectively.
- Constructed with high-reliability solid-state materials for extended operational life.
Applications
- Indicator lights on electronic control panels
- Status display modules in consumer appliances
- Visual signaling components in industrial equipment
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Kingbright or authorized distributors before integration. Confirm that the 20 mA forward current rating aligns with your circuit design constraints. Ensure storage conditions account for moisture sensitivity levels to maintain device integrity during assembly.
Selection Notes
Select this component when a low-profile red indicator is required for space-constrained printed circuit board layouts. The 20-degree viewing angle provides focused visibility compared to diffused alternatives. Consider the 75 mW power dissipation limit when designing thermal management strategies for dense arrays.
Part Context
This part belongs to the Kingbright KM2520 series of subminiature LEDs. The series offers various color options including green, blue, and yellow variants sharing similar physical dimensions and mounting characteristics. The AM2520EC09 specifically addresses applications requiring a standard red emission profile in a small form factor.
Replacement Considerations
The part number alias KM2520EC09 refers to the same component. Verify mechanical footprint compatibility if substituting with other SMD-2 packages from different manufacturers. Ensure electrical parameters such as forward voltage and peak wavelength meet system requirements.
