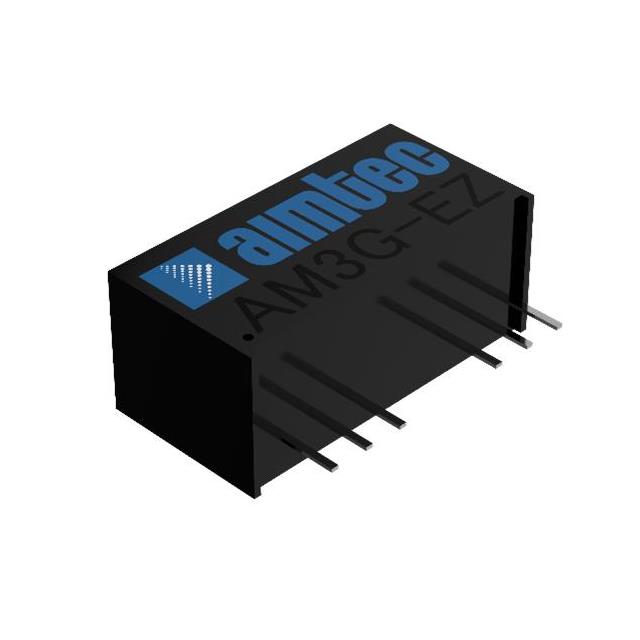

AM3G-4805DH30EZ

AM3G-4805DH30EZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is DC/DC Converter -5V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM3G-4805DH30EZ

• Description：DC/DC Converter -5V 3W
• Series：AM3G-EZ (3W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：72V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：300mA, 300mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：70%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 6 Leads
• Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AM3G-4805DH30EZ
