AP1608EC

LED Indication - Discrete Overview

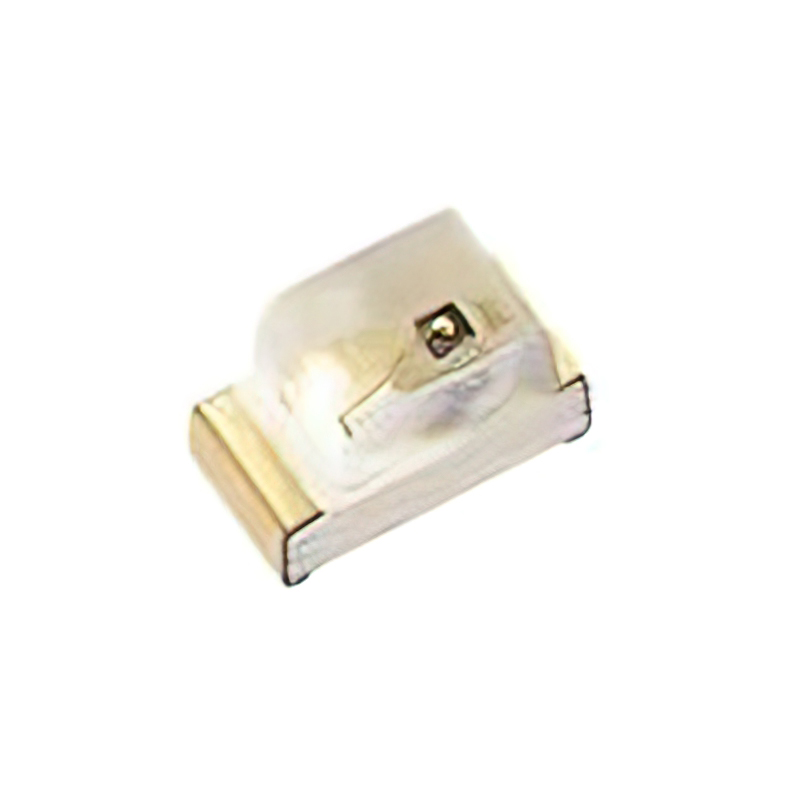

The Kingbright AP1608EC is a surface-mount monochromatic light-emitting diode emitting red light with a peak wavelength of 617 nm. It utilizes a water-clear rectangular lens and operates at a forward voltage of 2.5 V. The component delivers an optical intensity of 15 mcd with a viewing angle of 120 degrees. It features a maximum forward current rating of 160 mA and a power dissipation capacity of 75 mW. The physical dimensions are 1.6 mm in length, 0.8 mm in width, and 0.75 mm in height, conforming to the standard 0603 (1608 metric) package format.

LED Indication - Discrete Feature Summary

• High-efficiency red emission within a compact 0603 surface-mount footprint
• Wide 120-degree viewing angle for broad visibility
• Water-clear rectangular lens design for optimal light transmission

LED Indication - Discrete Applications

• Panel indicator lights
• Status signaling in electronic devices
• General-purpose illumination in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm exact binning and spectral characteristics. Ensure compatibility with automated pick-and-place equipment regarding the 0603 package dimensions. Confirm moisture sensitivity level handling requirements during storage and reflow soldering processes prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red indicator is required for dense circuit board layouts. The 160 mA maximum forward current allows for higher brightness output compared to standard 20 mA rated LEDs. Consider the 120-degree viewing angle if wide-area visibility is necessary rather than focused beam applications.

LED Indication - Discrete Part Context

This device belongs to the Kingbright KP-1608 series, which encompasses various single-color LEDs in the 0603 package. The series provides standardized footprints for designers seeking consistent mechanical integration across different color options while maintaining reliable electrical performance parameters.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
