APA1606VRBXF/A-5MAV

$0.70

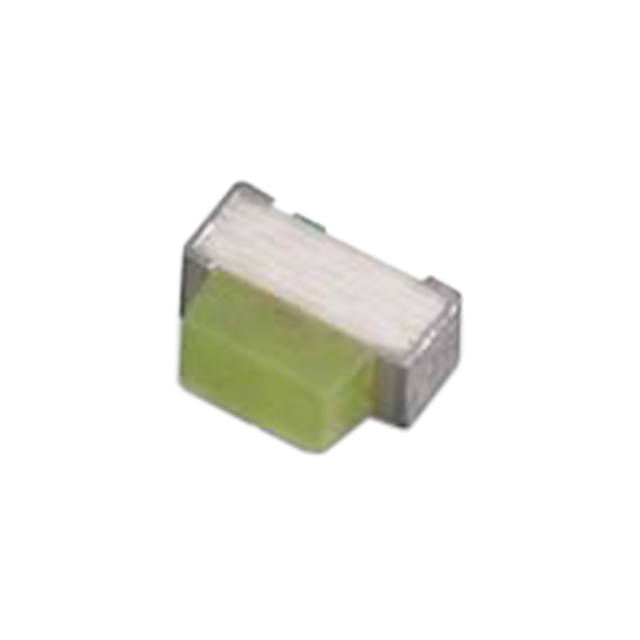

Description：LED BLUE DIFF CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4758b367d27f Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APA1606VRBXF/A-5MAV is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED BLUE DIFF CHIP SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APA1606VRBXF/A-5MAV

Description：LED BLUE DIFF CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Diffused
Millicandela Rating：120mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.60mm
Voltage - Forward (Vf) (Typ)：-
Current - Test：5mA
Viewing Angle：110°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：1.60mm L x 1.20mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APA1606VRBXF/A-5MAV

APA1606VRBXF/A-5MAV

LED Indication - Discrete Overview

The APA1606VRBXF/A-5MAV is a single-color surface-mount LED from Kingbright, emitting blue light with a yellow diffused lens. It utilizes a 1606 (4014 metric) package measuring 1.6 mm in length, 1.2 mm in width, and 0.6 mm in height. The device operates at a forward current of 5 mA with a forward voltage of 3 V and a power rating of 120 mW. It provides an optical intensity of 120 mcd and features a viewing angle of 110 degrees. The component supports an operating temperature range from -40°C to +85°C and includes moisture sensitivity level 3 classification.

LED Indication - Discrete Feature Summary

Blue emission source integrated within a compact right-angle SMD form factor
Yellow diffused lens design for optimized light distribution
RoHS compliant construction suitable for modern electronics manufacturing

LED Indication - Discrete Applications

Electronic device status indicators
Control panel illumination
Consumer appliance signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix A-5MAV against official Kingbright documentation to confirm lens color and intensity specifications. Ensure procurement channels provide valid RoHS compliance certificates. Confirm moisture sensitivity handling requirements during storage and assembly processes. Validate that the supplier offers authorized distribution channels to guarantee component authenticity and traceability.

LED Indication - Discrete Selection Notes

Select this component when a low-profile blue indicator is required for space-constrained designs. The 1606 package accommodates standard surface mount processes while maintaining a small footprint. Consider the 5 mA drive current for power efficiency applications. Verify compatibility with existing PCB silkscreen and pad layouts designed for the 1606 metric dimensions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's Special Colors series of single-color LEDs. It shares the 1606 package family with other variants like APA1606MGC and KPA-1606CGCK. The series focuses on providing diverse optical outputs within standardized mechanical envelopes for consistent manufacturing integration.
