APA1606ZGCK

$0.41

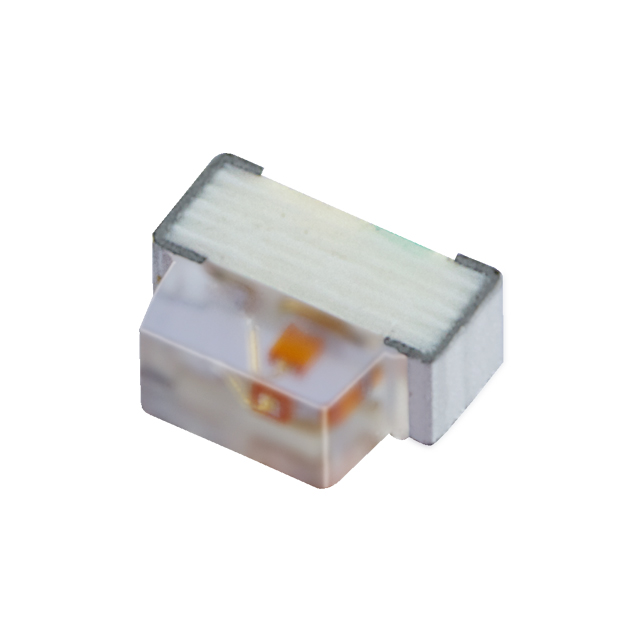

Description：LED GREEN CLEAR 2SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0ef926d6e4e2 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APA1606ZGCK is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR 2SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APA1606ZGCK

Description：LED GREEN CLEAR 2SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：300mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.60mm
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：110°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：525nm
Wavelength - Peak：515nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：2-SMD
Size / Dimension：1.60mm L x 1.20mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APA1606ZGCK

APA1606ZGCK

LED Indication - Discrete Overview

The APA1606ZGCK is a single-color green surface-mount LED manufactured by Kingbright. It features a rectangular water-clear lens with dimensions of 1.6 mm in length and 0.6 mm in width, and a total height of 1.2 mm. The device emits light at a peak wavelength of 525 nm with a nominal luminous intensity of 400 mcd. Electrical characteristics include a forward current rating of 20 mA and a forward voltage of 3.3 V. The component operates within a temperature range of -40 °C to +85 °C and has a viewing angle of 110 degrees.

LED Indication - Discrete Feature Summary

Right-angle SMD chip LED lamp design
Water clear rectangular lens for visibility
RoHS compliant construction

LED Indication - Discrete Applications

Backlighting applications
Indicator lights

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'CK' against the manufacturer's official datasheet to confirm packaging details and moisture sensitivity level. Ensure that the ordering information matches the exact electrical parameters required for the target circuit design. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact 1606 package size is required for green indication. Consider the 3.3 V forward voltage drop for power supply calculations. The right-angle orientation is suitable for PCB layouts where vertical light emission is preferred over top-down illumination.

LED Indication - Discrete Part Context

This part belongs to the 1606 series of surface-mount LEDs from Kingbright. It shares physical dimensions with other variants in the family but differs in color and optical properties. The ZGCK designation specifically identifies the green color variant with water-clear lens characteristics.
