APB3025SYKCGKC-F01

$0.41

Description：LED GRN/YLW CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a5cbac017b02 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APB3025SYKCGKC-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GRN/YLW CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APB3025SYKCGKC-F01

Description：LED GRN/YLW CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Yellow
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：60mcd Green, 120mcd Yellow
Lens Style：Rectangle with Flat Top
Lens Size：2.50mm x 1.50mm
Voltage - Forward (Vf) (Typ)：2.1V Green, 2V Yellow
Current - Test：20mA Green, 20mA Yellow
Viewing Angle：160°
Mounting Type：Surface Mount
Wavelength - Dominant：570nm Green, 590nm Yellow
Wavelength - Peak：574nm Green, 590nm Yellow
Features：-
Package / Case：1210 (3225 Metric)
Supplier Device Package：SMD
Size / Dimension：3.00mm L x 2.50mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APB3025SYKCGKC-F01

APB3025SYKCGKC-F01

LED Indication - Discrete Overview

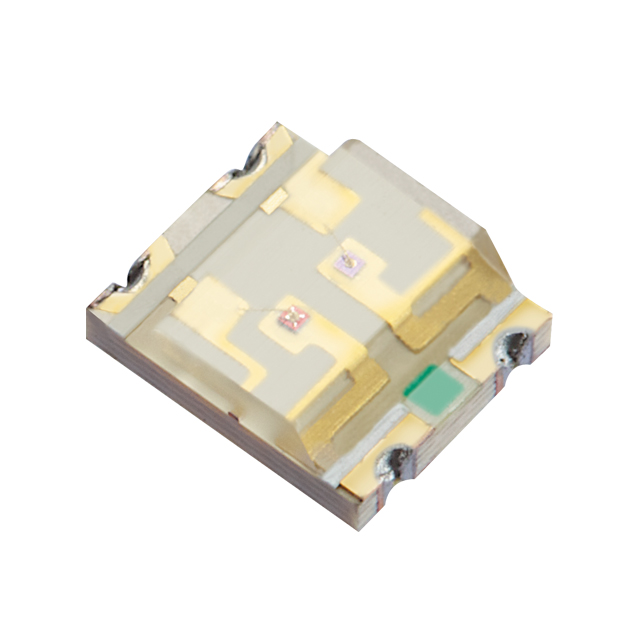

The APB3025SYKCGKC-F01 is a bi-color surface-mount LED by Kingbright, housed in a 1210 (3225 metric) package measuring 3.00mm x 2.50mm with a maximum height of 1.10mm. It features a water-clear rectangular lens with a flat top and a viewing angle of 160°. The device emits green light at a peak wavelength of 574nm with an intensity of 60mcd and yellow light at 590nm with an intensity of 120mcd. Typical forward voltages are 2.1V for the green element and 2.0V for the yellow element, both tested at 20mA.

LED Indication - Discrete Feature Summary

Dual-element configuration providing independent green and yellow emission within a single compact SMD footprint.
Water-clear rectangular lens design ensures high transparency and a wide 160-degree viewing angle for optimal visibility.
RoHS3 compliant construction supports environmentally conscious manufacturing standards.

LED Indication - Discrete Applications

Status indication on electronic circuit boards
Visual signaling in consumer electronics devices
Panel indicators for appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify component authenticity against Kingbright specifications before integration. Confirm moisture sensitivity level 3 compliance and adhere to recommended reflow profiles to prevent package damage during assembly processes.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require distinct green and yellow status signals. The 1210 form factor offers a balance between visibility and board real estate efficiency compared to smaller packages.

LED Indication - Discrete Part Context

This part belongs to the Kingbright APB3025 series of bi-color LEDs. It utilizes standard surface-mount technology compatible with automated pick-and-place equipment, facilitating efficient high-volume production workflows.
