Product Detailed Parameters

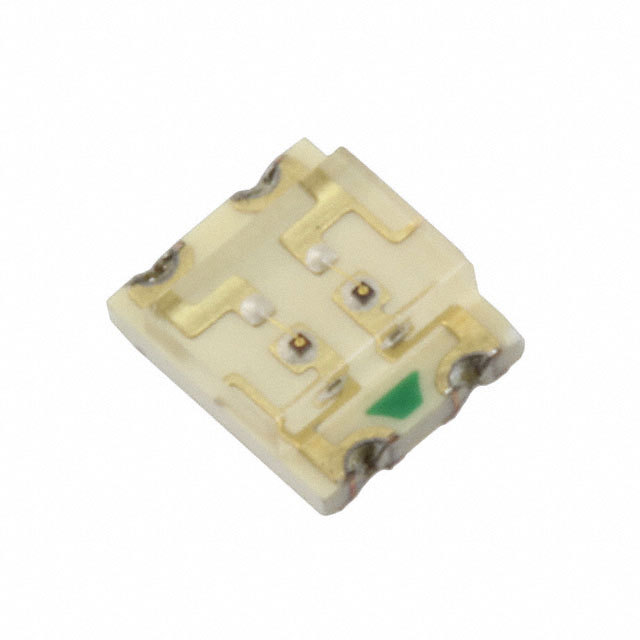

- Description：LED GREEN/RED CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：55mcd Green, 80mcd Red
- Lens Style：Rectangle with Flat Top
- Lens Size：2.00mm x 2.70mm
- Voltage - Forward (Vf) (Typ)：2.1V Green, 1.95V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：570nm Green, 630nm Red
- Wavelength - Peak：574nm Green, 645nm Red
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：SMD
- Size / Dimension：3.20mm L x 2.70mm W
- Height (Max)：1.10mm
- Grade：-
- Qualification：-
Download product information
Overview
The APB3227SURKCGKC is a bi-color surface-mount LED from Kingbright, featuring Hyper Red and Green emissions within the 1311 (3.2mm x 2.7mm) package. It operates with a forward current of 20 mA and a forward voltage of 2.5 V. The component delivers optical intensities of 250 mcd for red and 55 mcd for green, with peak wavelengths at 630 nm and 570 nm respectively. It offers a wide viewing angle of 100 degrees and functions reliably across an operating temperature range of -40°C to +85°C.
Feature Summary
- Dual-chip configuration enabling independent red and green light emission within a single compact SMD footprint.
- Wide 100-degree viewing angle ensures high visibility from multiple observation angles.
- Water-clear rectangular dome lens provides consistent optical transmission and color purity.
Applications
- Status indication on electronic control panels
- Power state signaling in consumer appliances
- Visual alerts in industrial instrumentation
Procurement Notes
Verify the specific suffix KCGKC against the manufacturer datasheet to confirm exact wavelength binning and intensity grading. Ensure PCB pad layouts match the 1311 metric dimensions. Confirm moisture sensitivity level handling procedures are followed during assembly to prevent package damage.
Selection Notes
Select this component when a wide viewing angle and distinct red/green differentiation are required in space-constrained designs. Compare forward voltage requirements against available drive circuits. Evaluate thermal management needs given the 75 mW power rating and enclosed SMD form factor.
Part Context
This part belongs to Kingbright's multi-color LED portfolio, designed for surface-mount technology integration. It utilizes standard lead-free packaging compliant with environmental directives. The 1311 package size balances component density with adequate light output for general indication purposes.
Replacement Considerations
Cross-reference with APB3227SURKZGC for alternative green wavelength options. Verify pinout compatibility before substituting with other 1311 bi-color LEDs from different manufacturers.
