APBD3224SURKSGC-F01

LED Indication - Discrete Overview

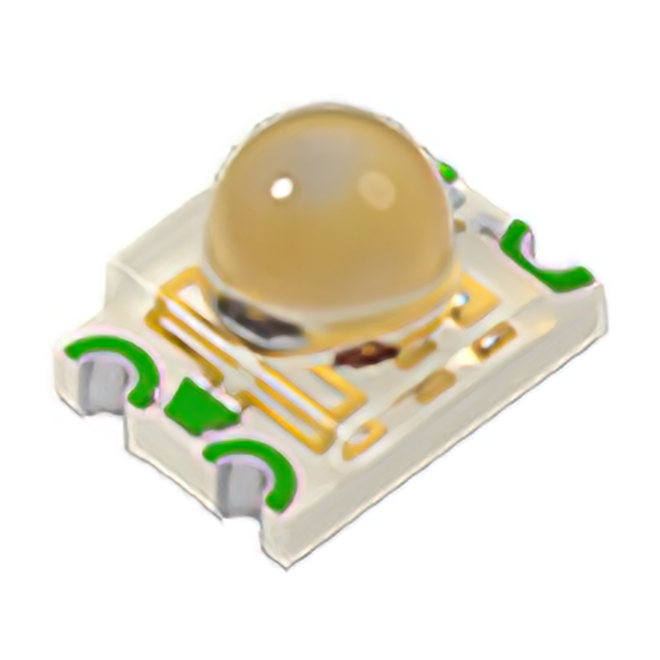

The Kingbright APBD3224SURKSGC-F01 is a bi-color surface-mount LED in a 1209 (3.2mm x 2.4mm) package. It emits red light at 630nm and green light at 568nm. The device features a water-clear dome lens with a 20-degree viewing angle. Electrical characteristics include a forward voltage of 1.95V for red and 2.2V for green, measured at a test current of 20mA. Optical output provides 800mcd intensity for the red segment and 60mcd for the green segment. The component operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Dual-chip bi-color configuration enabling independent red and green illumination within a compact SMD footprint.
• Water-clear dome lens design optimized for consistent optical transmission and a standardized 20-degree viewing angle.

LED Indication - Discrete Applications

• Status indication on electronic control panels
• Multi-state signaling in industrial equipment interfaces
• Visual feedback components in consumer appliance displays

LED Indication - Discrete Procurement Notes

Verify that the specific suffix F01 matches the required wavelength and luminous intensity specifications for the target application. Confirm moisture sensitivity level handling procedures are observed during assembly, as indicated by the MSL rating. Ensure the supplier documentation explicitly references the Kingbright datasheet DSAF2751 or equivalent official specification sheet to validate electrical parameters and physical dimensions before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a low-profile 1209 package is required for dual-color status indication. The high-intensity red output (800mcd) combined with moderate green output (60mcd) suits applications requiring distinct visual differentiation between states. Consider the 20mA drive current requirement and verify circuit compatibility with the specified forward voltages of 1.95V and 2.2V respectively.

LED Indication - Discrete Part Context

This part belongs to the Kingbright discrete LED portfolio, specifically categorized under multi-color surface-mount devices. It utilizes standard InGaAlP/GaN semiconductor technologies typical for visible spectrum indicators. The 1209 metric package size allows for automated pick-and-place assembly, integrating into modern PCB manufacturing workflows alongside other Kingbright HeliColour series components.

LED Indication - Discrete Replacement Considerations

APBD3224ESGC-F01 is documented as a similar replacement option from Kingbright. Verify electrical and mechanical compatibility before substitution.
