APBDA3020SURKCGKC-GX

LED Indication - Discrete Overview

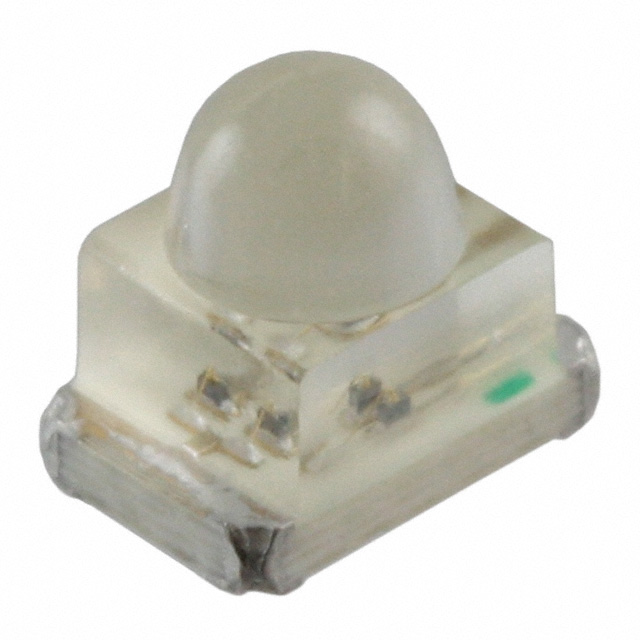

The Kingbright APBDA3020SURKCGKC-GX is a dual-color surface-mount LED featuring red and green emitters in a 3-SMD, no-lead package. It utilizes a common anode configuration with a water-clear dome lens. The device emits red light at a peak wavelength of 630 nm and green light at 570 nm. Typical forward voltages are 1.95 V for the red element and 2.1 V for the green element, tested at 20 mA. The component offers a viewing angle of 140 degrees and provides luminous intensities of 200 mcd for red and 50 mcd for green.

LED Indication - Discrete Feature Summary

• Dual-color emission capability within a compact SMD footprint
• Wide 140-degree viewing angle for broad visibility
• Common anode electrical configuration
• Water-clear dome lens design

LED Indication - Discrete Applications

• Status indication on electronic equipment panels
• Power supply status signaling
• Multi-state indicator lights for control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm exact binning and optical characteristics. Ensure compatibility with standard reflow soldering profiles for 3-SMD packages. Confirm RoHS compliance requirements align with target market regulations before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a small form factor but multiple status colors are needed. The wide viewing angle makes it suitable for applications where the indicator may not be viewed directly from the front axis. Verify that the required luminous intensity meets visibility needs under ambient lighting conditions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's family of multi-color surface-mount LEDs designed for panel mounting. It shares the 3x2 mm mechanical dimensions with other single and bi-color variants in the series, allowing for standardized PCB footprints across different product lines requiring varied color outputs.

LED Indication - Discrete Replacement Considerations

Direct replacements include other Kingbright bi-color LEDs in the 3010 or 3020 metric series with matching pin configurations and electrical ratings. Cross-brand substitutes must match the 3-SMD package dimensions, common anode structure, and similar spectral output ranges.
