APC08G08-J

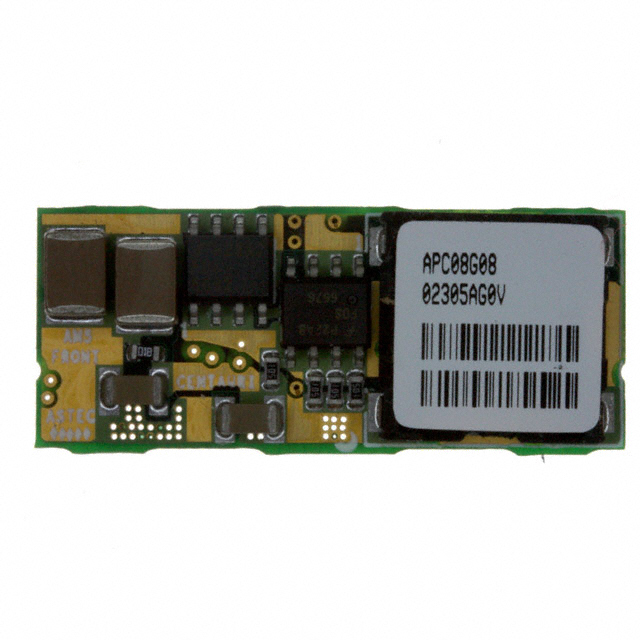

APC08G08-J is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 2.5V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for APC08G08-J

• Description：DC DC CONVERTER 2.5V 30W
• Series：APC08 (30W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：6.5V
• Voltage - Input (Max)：13V
• Voltage - Output 1：2.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：8A
• Power (Watts)：30 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：90%
• Mounting Type：Surface Mount
• Package / Case：7-SMD Module
• Size / Dimension：1.32" L x 0.53" W x 0.28" H (33.5mm x 13.5mm x 7.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for APC08G08-J
