APD3224ZGCK-F01

$0.46

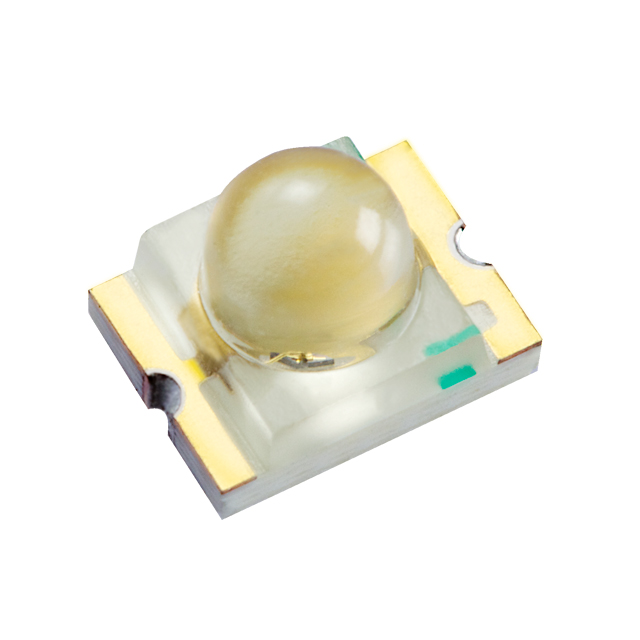

Description：LED GREEN CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bd80f64d234c Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APD3224ZGCK-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR 2SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APD3224ZGCK-F01

Description：LED GREEN CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：5800mcd
Lens Style：Round with Domed Top
Lens Size：1.70mm Dia
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm
Wavelength - Peak：515nm
Features：-
Package / Case：1210 (3225 Metric)
Supplier Device Package：2-SMD
Size / Dimension：3.20mm L x 2.40mm W
Height (Max)：2.50mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APD3224ZGCK-F01

APD3224ZGCK-F01

LED Indication - Discrete Overview

The APD3224ZGCK-F01 is a single-color green LED from Kingbright, designed for surface-mount technology in the 1210 (3224 metric) package. It emits light at a wavelength of 525 nm with a water-clear dome lens. The component operates with a forward current of 20 mA and a forward voltage of 3.3 V. It delivers a luminous intensity of 2.4 cd and has a power rating of 102.5 mW. The device functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Features a water-clear dome lens for focused light emission
Utilizes InGaP/GaAs material structure for green spectrum output
Designed for high-intensity indication applications

LED Indication - Discrete Applications

Panel status indicators
Power supply status lights
Electronic equipment front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix F01 matches the required reel packaging configuration. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure ESD handling protocols are followed during assembly due to moisture sensitivity classification.

LED Indication - Discrete Selection Notes

Select this component when high brightness is required in a standard 1210 footprint. Compare forward voltage requirements against available drive circuits. Consider thermal management capabilities given the 102.5 mW power dissipation rating under continuous operation conditions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's general-purpose SMD LED portfolio. It serves as a compact solution for space-constrained designs requiring reliable green illumination. The 1210 form factor allows compatibility with automated pick-and-place manufacturing processes.
