APG1005VWF-A1-5MAV

LED Indication - Discrete Overview

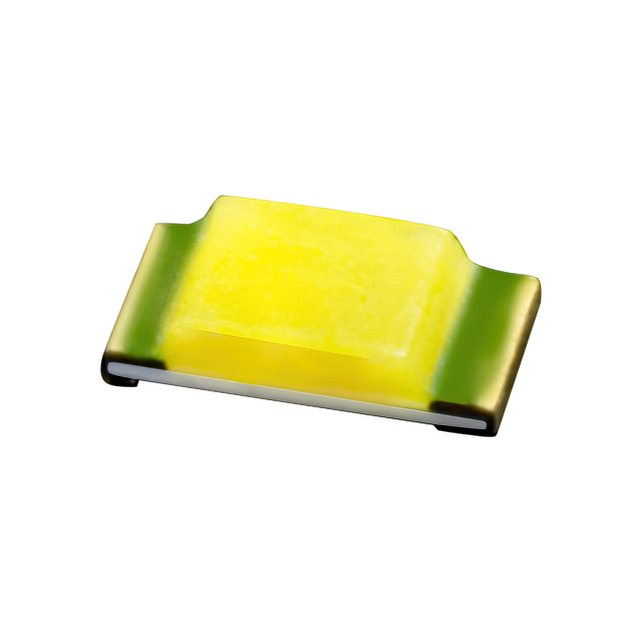

The APG1005VWF-A1-5MAV is a single white surface-mount LED from Kingbright, housed in an ultra-thin 0402 (1.0x0.5 mm) package with a height of 0.2 mm. It features a rectangular yellow lens measuring 0.6 x 0.12 mm and delivers a light intensity of 310 mcd at a viewing angle of 160 degrees. The component operates with a forward current of 5 mA and a forward voltage of 2.9 V, functioning within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Ultra-thin profile suitable for space-constrained designs
• High viewing angle for broad illumination coverage
• Rectangular lens shape for directional light control

LED Indication - Discrete Applications

• Backlighting for mobile devices
• Indicator lights in compact electronics
• Thin-profile display illumination

LED Indication - Discrete Procurement Notes

Verify RoHS compliance status through official manufacturer documentation before integration. Confirm moisture sensitivity handling requirements during storage and reflow soldering processes. Ensure the specific ordering suffix matches the required lens color and packaging format for your production line.

LED Indication - Discrete Selection Notes

Select this component when minimal board thickness is critical due to its 0.2 mm height. The 160-degree viewing angle makes it suitable for applications requiring wide dispersion. Verify that the 5 mA forward current aligns with your power budget and thermal management capabilities.

LED Indication - Discrete Part Context

This part belongs to Kingbright's APG series of ultra-thin SMD LEDs. It is designed for modern consumer electronics where space optimization is paramount. The 0402 footprint provides a balance between size and light output compared to smaller packages like 0201.

LED Indication - Discrete Replacement Considerations

Check Kingbright datasheets for other APG series variants with similar dimensions but different luminous intensity or color temperature specifications. Ensure any substitute maintains the same 0402 footprint and electrical characteristics.
