APHBM2012PBASURKC

LED Indication - Discrete Overview

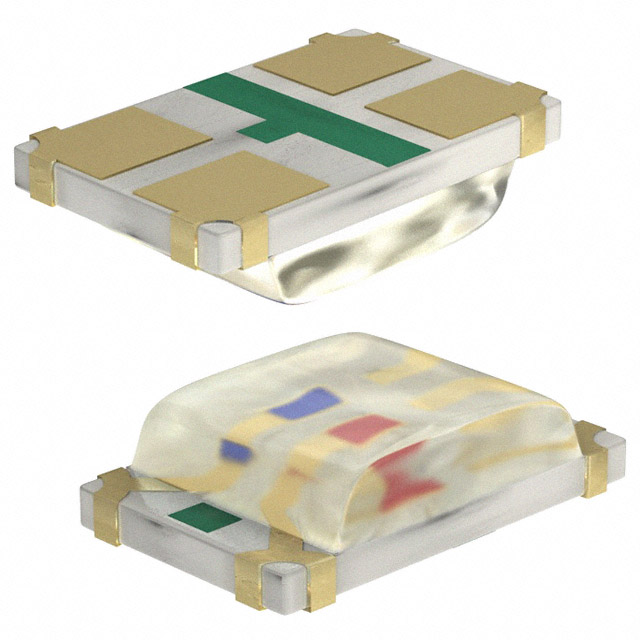

The APHBM2012PBASURKC is a surface-mount bi-color LED from Kingbright, featuring red and blue emission within a 2012 (2.0 x 1.25 mm) package. It utilizes two LEDs with four pins for independent control. The device operates at a maximum forward current of 30mA per color, with forward voltages of 3.2V for blue and 1.95V for red. It offers a 120-degree viewing angle and dissipates up to 75mW. The lens is colorless and rectangular.

LED Indication - Discrete Feature Summary

• Dual-chip bi-color configuration enabling simultaneous or alternating red and blue light output
• Compact 2012 surface-mount footprint designed for space-constrained PCB layouts
• Wide 120-degree viewing angle for enhanced visibility in indicator applications

LED Indication - Discrete Applications

• Status indication on electronic devices requiring multi-state signaling
• Consumer electronics where compact bi-color feedback is required
• Industrial control panels needing distinct visual alerts

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer's latest datasheet to confirm pinout and optical characteristics. Ensure compatibility with standard reflow soldering profiles for 2012 packages. Confirm RoHS compliance status through official documentation before integration into regulated products.

LED Indication - Discrete Selection Notes

Select this component when a single package must provide two distinct colors without increasing board area. Compare forward voltage requirements against available drive circuits for both red and blue channels. Consider the 75mW power dissipation limit when designing thermal management solutions for high-density assemblies.

LED Indication - Discrete Part Context

This part belongs to Kingbright's SMD LED portfolio, specifically the 2012 metric size category. It serves as a compact alternative to discrete dual-LED setups, integrating red and blue emitters into a standardized surface-mount form factor suitable for automated assembly processes.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 2012 bi-color LEDs from Kingbright such as the KPHBM series, provided pin configurations and electrical parameters match. Verify mechanical dimensions and spectral peak wavelengths to ensure functional equivalence in existing designs.
