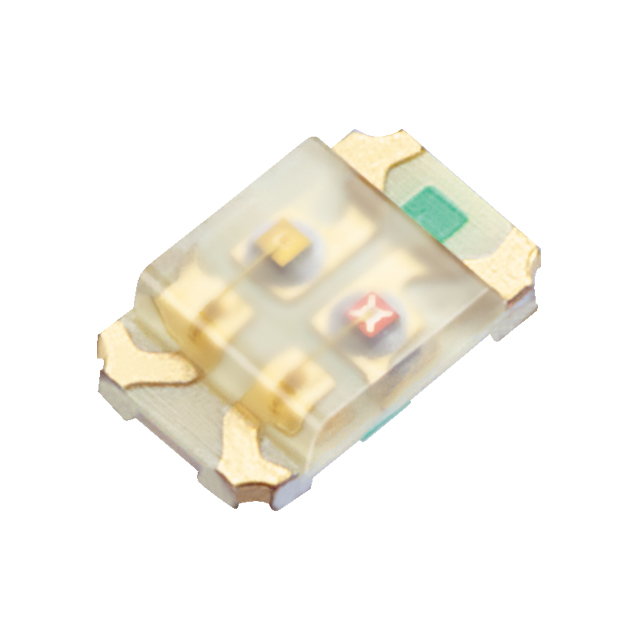

APHBM2012SURKZGKC

$0.66

Description：LED GREEN/RED CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a7b46af479af Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APHBM2012SURKZGKC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN/RED CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APHBM2012SURKZGKC

Description：LED GREEN/RED CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：280mcd Green, 250mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：1.25mm x 1.20mm
Voltage - Forward (Vf) (Typ)：3.3V Green, 1.95V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm Green, 630nm Red
Wavelength - Peak：515nm Green, 645nm Red
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：4-SMD
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.45mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APHBM2012SURKZGKC

APHBM2012SURKZGKC

LED Indication - Discrete Overview

The Kingbright APHBM2012SURKZGKC is a surface-mount multi-color LED featuring red and green chips within a 2.0x1.25mm package. It operates with forward voltages of 1.95V for the green element and 3.3V for the red element. The device supports a maximum forward current of 20mA and dissipates up to 75mW or 102.5mW depending on configuration. It provides a wide viewing angle of 120 degrees, ensuring broad visibility for indicator applications.

LED Indication - Discrete Feature Summary

Dual-chip construction combining red and green LEDs in a compact SMD form factor
Wide 120-degree viewing angle for enhanced visibility
Low power consumption suitable for battery-operated devices

LED Indication - Discrete Applications

Status indicators for electronic equipment
Backlighting for control panels
Indicator lights for portable consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific binning requirements for forward voltage and luminous intensity prior to ordering, as these parameters can vary between manufacturing lots. Confirm that the 2.0x1.25mm footprint aligns with your PCB design constraints. Ensure thermal management capabilities are sufficient for the specified power dissipation limits during continuous operation.

LED Indication - Discrete Selection Notes

Select this component when a dual-color indication is required in a minimal space constraint. The distinct forward voltage levels for each color allow for independent control if necessary. Consider the 120-degree viewing angle for applications requiring off-axis visibility. Verify compatibility with standard reflow soldering profiles for surface-mount assembly.

LED Indication - Discrete Part Context

This part belongs to Kingbright's 2.0x1.25mm SMD LED series, designed for high-density circuit boards. It serves as a compact alternative to larger through-hole indicators. The series emphasizes low profile and energy efficiency, making it suitable for modern miniaturized electronics where space and power are critical factors.
