APHD1608LSURCK

LED Indication - Discrete Overview

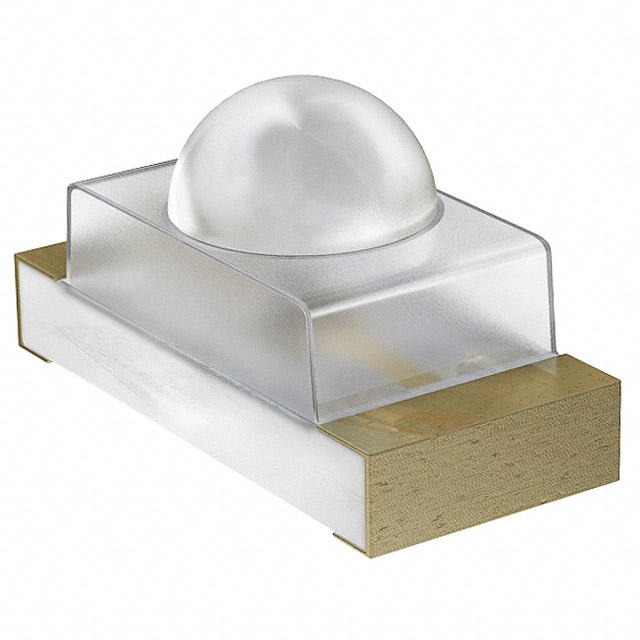

The APHD1608LSURCK is a single-color red LED from the Kingbright HeliDome series, designed for surface-mount technology in the 0603 (1.6 mm x 0.8 mm) package. It features a dome lens with a water-clear colorless appearance and emits light at a peak wavelength of 630 nm. The component operates with a forward current of 2 mA and a forward voltage of 1.75 V, delivering an optical intensity of 45 mcd. It supports a viewing angle of 100 degrees and functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• HeliDome series construction provides a dome-shaped lens for optimized light distribution
• Low power consumption design suitable for energy-efficient indicator applications
• Moisture sensitivity level 3 classification requires standard handling precautions

LED Indication - Discrete Applications

• Device status indicators
• Backlight illumination
• Panel indicator lights

LED Indication - Discrete Procurement Notes

Verify RoHS compliance status through official manufacturer documentation prior to procurement. Confirm moisture sensitivity level 3 requirements are met for storage and reflow soldering processes. Ensure ESD protection protocols are followed during handling to prevent electrostatic discharge damage to the semiconductor junction.

LED Indication - Discrete Selection Notes

Select this component when a low-profile 0603 form factor is required with specific 630 nm red emission characteristics. The 2 mA operating current distinguishes it from higher-power variants like the AA1608SURSK. Consider the 100-degree viewing angle for visibility requirements and verify thermal limits against the application environment.

LED Indication - Discrete Part Context

This part belongs to the Kingbright HeliDome family, which utilizes AlGaInP on GaAs substrates for hyper-red emission. The 1608 metric footprint allows for dense PCB layouts. It is distinct from rectangular lens variants and infrared models within the same manufacturer portfolio.

LED Indication - Discrete Replacement Considerations

APTD1608LSURCK offers similar electrical parameters but features a narrower 60-degree viewing angle and taller profile. APHD1608LCGCK shares the package and lens style but emits green light at 570 nm.
