APL3015EC-F01

LED Indication - Discrete Overview

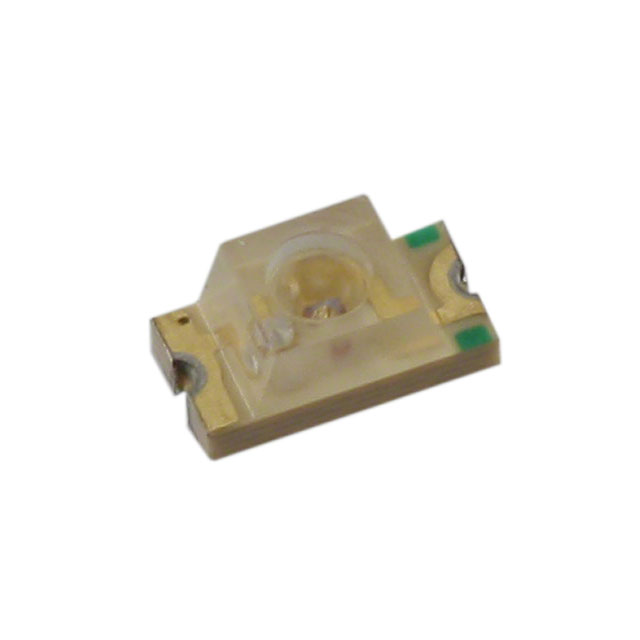

The Kingbright APL3015EC-F01 is a single-color surface-mount LED emitting red light with a dominant wavelength of 625 nm. It utilizes a rectangular water clear lens within a 1206 (3216 metric) package measuring 3.0 mm in length, 1.5 mm in width, and 1.4 mm in height. The component operates at a forward current of 20 mA with a forward voltage of approximately 2 V. It features an inner dome lens design and supports standard SMD/SMT installation methods for automated assembly processes.

LED Indication - Discrete Feature Summary

• Features a rectangular water clear lens with an inner dome design for consistent light emission.
• Designed for surface mount technology (SMT) to facilitate automated PCB assembly.
• Constructed with low power consumption characteristics suitable for energy-efficient applications.

LED Indication - Discrete Applications

• Indicator lights for electronic devices
• Panel status indicators
• General purpose illumination in consumer electronics

LED Indication - Discrete Procurement Notes

Verify moisture sensitivity level 3 compliance before storage and handling. Ensure proper reflow soldering profiles are followed to maintain component integrity. Confirm RoHS compliance requirements match specific regional regulations. Check datasheet for recommended peak reflow temperature limits to prevent thermal damage during manufacturing processes.

LED Indication - Discrete Selection Notes

Select this component when a compact 1206 form factor is required for red indication. Consider the 625 nm wavelength for visibility needs. Evaluate the 20 mA forward current rating against circuit drive capabilities. Compare physical dimensions against available board space constraints prior to finalizing the design.

LED Indication - Discrete Part Context

This part belongs to the Kingbright APL3015 series of single-color SMD LEDs. The series offers various color options including yellow and red variants within the same 1206 package footprint. This specific model provides a standardized solution for manufacturers requiring consistent red illumination in space-constrained designs.

LED Indication - Discrete Replacement Considerations

APL3015QYC serves as a yellow alternative within the same package family. APL3015SRCPRV-F01 and APL3015SURCK-F01 are red variants with different wavelengths and intensities. Verify electrical parameters and optical characteristics when substituting with these related models.
