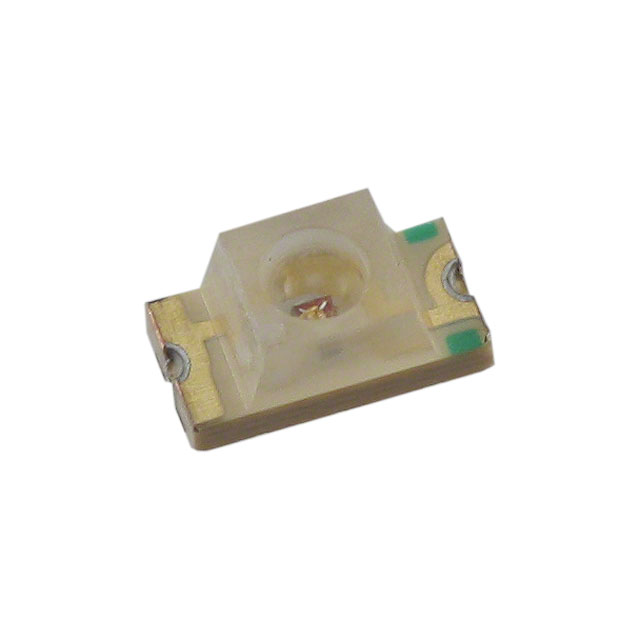

APL3015SURCK-F01

$0.27

Description：LED RED CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d11c198ba789 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APL3015SURCK-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APL3015SURCK-F01

Description：LED RED CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：180mcd
Lens Style：Round with Flat Top
Lens Size：0.18mm Dia
Voltage - Forward (Vf) (Typ)：1.95V
Current - Test：20mA
Viewing Angle：70°
Mounting Type：Surface Mount
Wavelength - Dominant：630nm
Wavelength - Peak：645nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：3.00mm L x 1.50mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APL3015SURCK-F01

APL3015SURCK-F01

LED Indication - Discrete Overview

The Kingbright APL3015SURCK-F01 is a single-color surface-mount LED emitting red light with a water-clear lens. It operates at a forward voltage of 1.95 V and a maximum forward current of 20 mA, dissipating up to 75 mW. The device features a rectangular lens measuring 2 mm by 1.5 mm with a height of 1.4 mm. It emits at a peak wavelength of 630 nm with an optical intensity of 500 mcd. Designed for SMD/SMT installation, it functions within a temperature range of -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

Surface-mount construction in a compact 1206 package
Water-clear lens for transparent light transmission
Compliant with RoHS environmental standards

LED Indication - Discrete Applications

PCB status indicators
Electronic equipment front panels
Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific part number against manufacturer documentation to confirm availability and exact specifications. Check for any recent updates to the datasheet or compliance certifications. Ensure that the ordering suffix matches the required packaging format. Confirm compatibility with standard reflow soldering profiles. Validate that the component meets all necessary regulatory requirements for the intended market.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard red indicator in a small form factor. Consider the 70-degree viewing angle and 500 mcd intensity for visibility needs. Evaluate thermal management capabilities given the 75 mW power dissipation limit. Compare against other colors in the KPL-3015 series if different wavelengths are needed. Ensure the 1.4 mm height fits within the mechanical constraints of the assembly.

LED Indication - Discrete Part Context

This LED belongs to the Kingbright APL series, designed for surface-mount technology. It shares physical dimensions with other variants in the 1206 footprint family. The product line offers multiple color options including yellow and green. These components are commonly used in consumer electronics and industrial control systems.
