APTM10UM01FAG

Single FETs, MOSFETs Overview

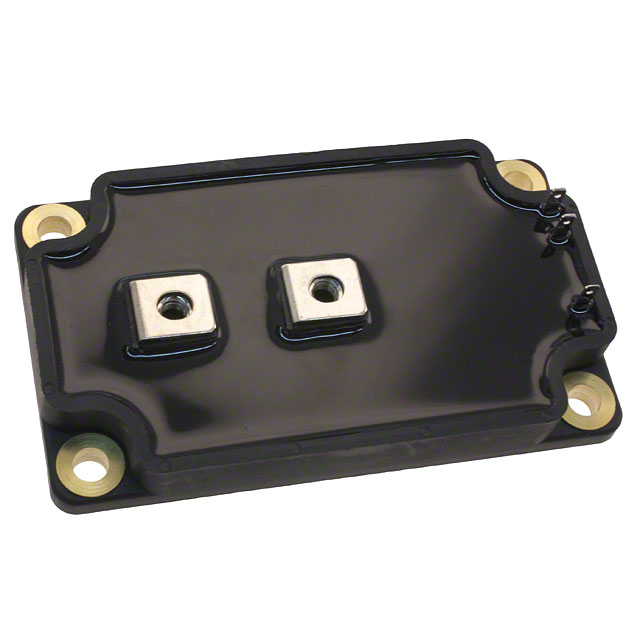

The APTM10UM01FAG is a single switch MOSFET module manufactured by Microchip Technology. It utilizes silicon technology and features screw mount installation within an SP6 package. The device operates with a gate-source voltage range of -30 V to +30 V. It supports a minimum operating temperature of -40 C and a maximum operating temperature of +150 C.

Single FETs, MOSFETs Feature Summary

• Integrates PM-MOSFET and FREDFET technologies in a single switch configuration
• Designed for screw mount installation on heatsinks or chassis
• Constructed using silicon semiconductor material

Single FETs, MOSFETs Applications

• Power conversion systems requiring integrated switching
• Industrial motor drive circuits
• High-temperature electronic assemblies

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Microchip Technology before procurement. Confirm that the SP6 package dimensions and screw mounting requirements align with the mechanical design constraints of the target application assembly.

Single FETs, MOSFETs Selection Notes

Select this component when a combined PM-MOSFET and FREDFET solution is required in a ruggedized, screw-mountable form factor. Ensure the system thermal management can handle the specified junction temperature limits and that the gate drive circuitry accommodates the ±30 V rating.

Single FETs, MOSFETs Part Context

This module belongs to the APTM series of discrete power modules from Microchip Technology. It is categorized under Discrete and Power Modules, specifically designed as a single switch unit. The product integrates multiple semiconductor functions into one robust package for industrial applications.

Single FETs, MOSFETs Replacement Considerations

Consult official Microchip documentation for verified substitute part numbers. Do not assume cross-compatibility with other MOSFET modules without verifying pinout, electrical ratings, and thermal characteristics.
