APTM20DAM05G

Single FETs, MOSFETs Overview

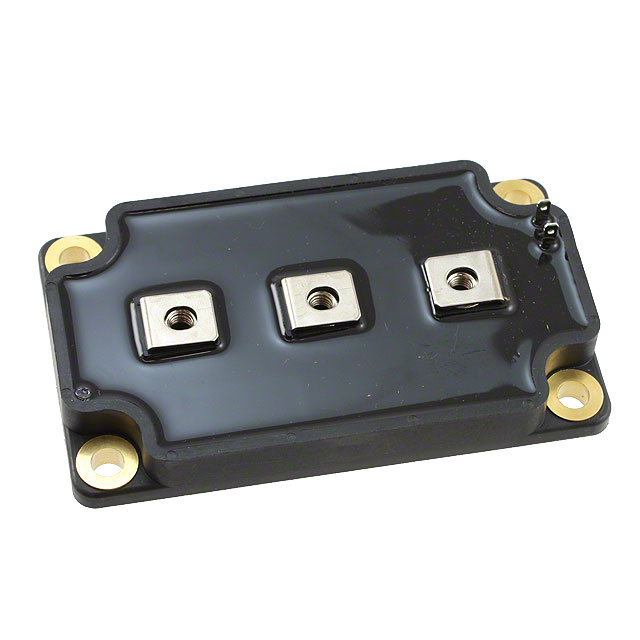

The APTM20DAM05G is a MOSFET module manufactured by Microchip Technology. It utilizes silicon technology and belongs to the PM-MOSFET-7-SP6C series. The component is designed for power applications requiring robust switching capabilities within a standardized module form factor.

Single FETs, MOSFETs Feature Summary

• Integrated MOSFET module construction
• Silicon-based semiconductor technology
• Standardized SP6C packaging configuration

Single FETs, MOSFETs Applications

• Power electronics systems
• Industrial motor drives
• General-purpose switching applications

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet revision and product change notifications prior to procurement. Confirm that the SP6C package dimensions and pinout align with the target PCB layout. Ensure thermal management requirements are met for the intended operating environment, as module performance depends on proper heat sinking.

Single FETs, MOSFETs Selection Notes

Select this component when a pre-packaged silicon MOSFET solution is required. The SP6C format offers a balance of current handling and thermal dissipation. Consider the specific voltage and current ratings relative to the load requirements. Verify compatibility with existing gate drive circuits and mounting hardware specifications.

Single FETs, MOSFETs Part Context

This part falls under Microchip Technology's discrete and power modules category. It is part of the broader portfolio of power semiconductors designed for industrial and commercial applications. The module integrates multiple MOSFETs into a single unit for improved reliability and ease of assembly compared to discrete components.
