APTM20UM03FAG

Single FETs, MOSFETs Overview

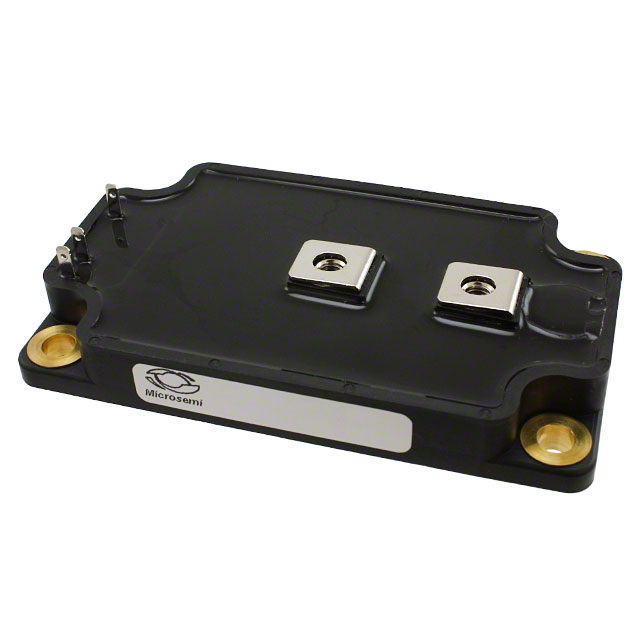

The APTM20UM03FAG is a single N-channel MOSFET module manufactured by Microchip Technology. It features a 200V drain-source voltage rating and a continuous drain current of 580A at 25°C case temperature. The device supports a peak repetitive forward avalanche energy capability with an Idm of 2320A. Packaged in the SP6C form factor, it integrates a MOSFET with a FreDFET diode for high-power switching applications.

Single FETs, MOSFETs Feature Summary

• Integrates N-channel MOSFET with Fast Recovery Diode (FreDFET) technology
• Designed for high-current switching with 580A continuous drain current capability
• Utilizes SP6C package for efficient thermal management and compact integration

Single FETs, MOSFETs Applications

• High-frequency power conversion systems
• Industrial motor drives and inverters
• Uninterruptible power supplies (UPS)

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet revision and ordering suffix to ensure compatibility with your design requirements. Confirm that the SP6C package dimensions match your PCB layout constraints. Check for any recent product change notifications regarding material composition or manufacturing location updates before finalizing procurement.

Single FETs, MOSFETs Selection Notes

Select this component when a robust N-channel MOSFET with integrated fast recovery diode is required for 200V applications. Ensure the thermal design can handle the 580A continuous current and 2320A peak current ratings under expected operating conditions. Verify gate drive requirements align with the module's electrical characteristics.

Single FETs, MOSFETs Part Context

This part belongs to Microchip's discrete and power modules category, specifically within the MOSFET modules sub-category. It utilizes silicon technology and is marketed under the Microchip Technology trademark. The module combines power semiconductor devices into a single unit to simplify circuit design and improve reliability in power electronics.

Single FETs, MOSFETs Replacement Considerations

Consult official Microchip documentation for qualified replacement parts. No specific substitute part numbers are confirmed in the provided source data.
