ARM5G62312DM

Antennas RF Overview

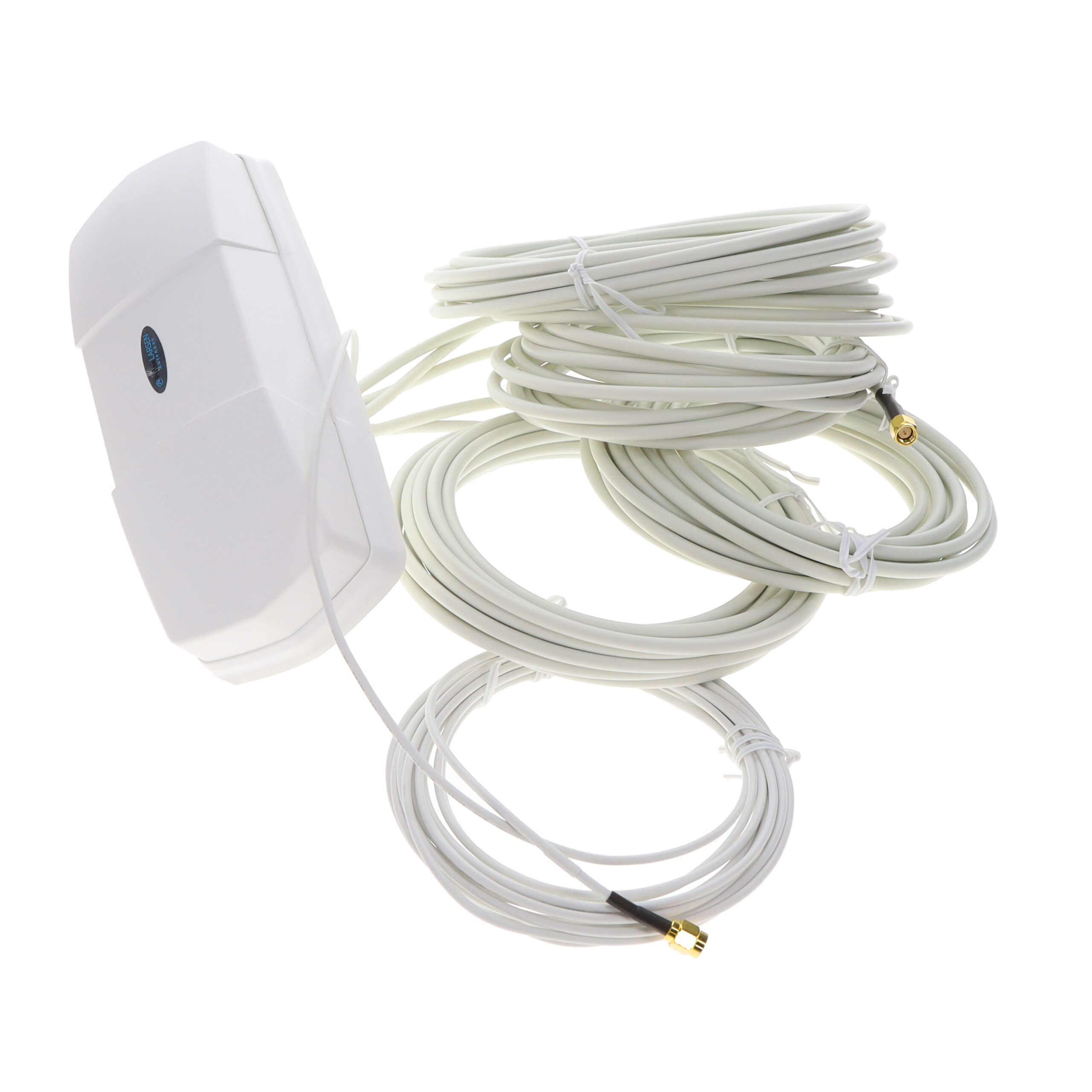

The ARM5G62312DM is a multi-band RF antenna module manufactured by Pulse Electronics, designed for vehicular and rugged outdoor applications. It supports 4G LTE, 5G, BeiDou, GLONASS, GNSS, and GPS frequencies. The unit features an IP67 ingress protection rating and utilizes a magnetic mounting type for secure installation. Key electrical parameters include a maximum power handling of 45 W and a VSWR of 2. The antenna incorporates a Low Noise Amplifier (LNA) and connects via SMA male connectors. It operates within frequency ranges covering cellular bands (644MHz–2.69GHz), Wi-Fi (2.4GHz–2.5GHz, 5.15GHz–5.925GHz), and navigation bands (1.559GHz–1.606GHz).

Antennas RF Feature Summary

• Supports multiple wireless standards including 4G LTE, 5G, and various global navigation satellite systems.
• Features an integrated Low Noise Amplifier to enhance signal reception performance.
• Constructed with IP67 rated housing for durability in harsh environmental conditions.
• Utilizes a magnetic base for flexible and non-permanent installation on metal surfaces.

Antennas RF Applications

• Vehicular communication systems requiring multi-band connectivity
• Rugged outdoor IoT sensor nodes
• Mobile telemetry and tracking devices
• Maritime or industrial equipment needing reliable GNSS positioning

Antennas RF Procurement Notes

Verify the specific connector configuration and cable length requirements against your system design before ordering. Confirm that the magnetic mounting surface is compatible with the intended installation environment. Ensure that the host device interfaces correctly with the SMA male connectors provided. Check for any regional regulatory compliance requirements relevant to the supported frequency bands. Review the datasheet for precise mechanical dimensions to ensure adequate clearance during assembly.

Antennas RF Selection Notes

Select this model when a single solution is needed to consolidate cellular, Wi-Fi, and GNSS functions. It is suitable for applications where space constraints prevent the use of separate antennas. Consider the IP67 rating if the deployment location exposes components to dust or water. The integrated LNA makes it appropriate for scenarios with weak signal strength. Verify that the 45 W power rating exceeds the maximum output of the connected transceiver.

Antennas RF Part Context

This component belongs to the Razorback series of rugged outdoor antennas from Pulse Electronics. These products are engineered for high-performance wireless infrastructure and consumer applications. The series emphasizes durability and broad frequency coverage. This specific part number represents a modular solution integrating multiple radio technologies into one compact unit.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult official distributor catalogs or manufacturer engineering support for direct equivalents. Cross-referencing based on frequency ranges, connector types, and mounting styles is recommended when evaluating alternative components.
