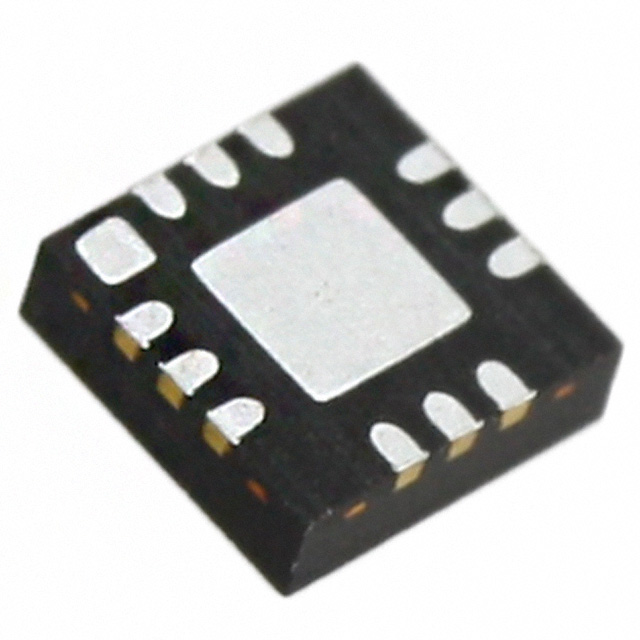

AS1351

$2.84

Description：IC REG LINEAR POS PROG 12-QFN
Series：-
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ece632c6154e Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AS1351 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is IC REG LINEAR POS PROG 12-QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for AS1351

Description：IC REG LINEAR POS PROG 12-QFN
Series：-
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Programmable
Number of Regulators：2
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.8V
Voltage - Output (Max)：3.3V
Voltage Dropout (Max)：-
Current - Output：200mA, 200mA
Current - Quiescent (Iq)：200 µA
Current - Supply (Max)：-
PSRR：70dB ~ 40dB (1KHz ~ 100kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature, Soft Start
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：12-VFQFN Exposed Pad
Supplier Device Package：12-QFN (3x3)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for AS1351

AS1351

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The AS1351 is a dual CMOS low-dropout voltage regulator housed in a 12-pin QFN 3x3mm package. It features two independent programmable regulators with an output current of 200mA each and a supply range of 3V to 5.5V. The output voltage is adjustable from 1.8V to 3.3V in 0.1V steps via one-time programmable (OTP) functions or factory trimming. Key electrical parameters include a dropout voltage of 0.2V at 200mA, a shutdown current of ≤1µA, and a typical supply current of 125µA. Power supply rejection ratio reaches 70dB at 1kHz and 40dB at 100kHz.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Dual independent LDOs with OTP programming for customized voltage settings
Low noise performance suitable for sensitive analog circuits
Integrated thermal protection, over-current protection, and soft-start control

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Mobile phones and PDAs
MP3 players and handheld computers
Digital cameras and battery-powered devices

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific ordering suffix to confirm whether the device requires onsite OTP programming or comes as a factory-trimmed fixed voltage variant. Confirm that the selected version matches the required output voltages for VOUT1 and VOUT2 before procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when designing compact mobile systems requiring two distinct regulated rails from a single package. Ensure the application utilizes ceramic capacitors between 1µF and 4.7µF to maintain stability and optimal noise performance.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

Manufactured by austriamicrosystems AG (now ams AG), the AS1351 belongs to a series of high-performance power management solutions designed for portable electronics. It replaces discrete regulator designs to save board space while maintaining efficiency in battery-operated environments.
