ASDMPLV-148.500MHZ-LR-T3

Oscillators Overview

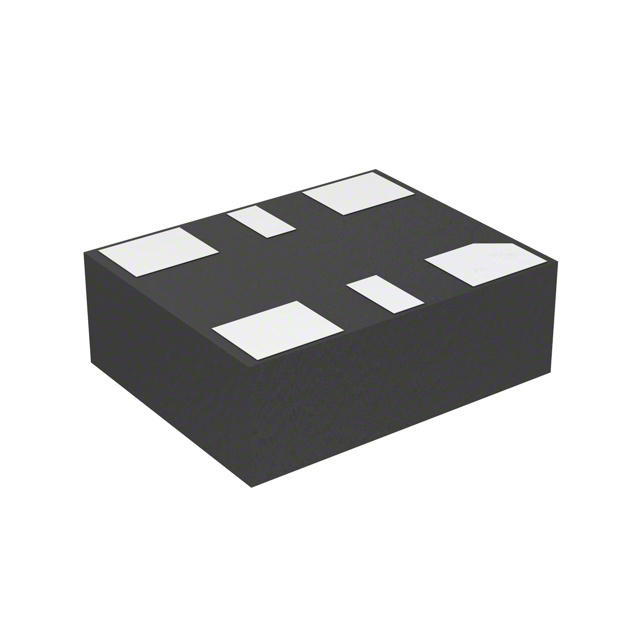

The ASDMPLV-148.500MHZ-LR-T3 is a MEMS oscillator manufactured by Abracon LLC, operating at a frequency of 148.5 MHz with a stability of 25 PPM. It utilizes an LVDS output format and functions within a supply voltage range of 1.8V to 3.3V. The component supports a minimum operating temperature of -40°C and a maximum of +85°C. It features a 6-SMD package with dimensions of 2.50mm x 2.00mm and a maximum height of 0.90mm.

Oscillators Feature Summary

• MEMS technology for enhanced reliability
• LVDS output interface
• Compact surface-mount design

Oscillators Applications

• High-speed data transmission systems
• Telecommunications equipment
• Network infrastructure components

Oscillators Procurement Notes

Verify the specific output voltage requirements against your system design, as the device supports a wide range from 1.8V to 3.3V. Confirm that the LVDS signal compatibility matches your receiving circuitry. Ensure the thermal environment remains within the specified -40°C to +85°C operational limits to maintain the stated 25 PPM frequency stability. Check for any specific handling precautions related to the 6-SMD package during assembly.

Oscillators Selection Notes

Select this component when a precise 148.5 MHz clock signal is required for high-speed digital interfaces. The LVDS output is suitable for applications demanding low noise and high-speed data integrity. Consider the compact 2.50mm x 2.00mm footprint if space constraints are critical. The wide supply voltage flexibility allows integration into various power domains without additional level shifting.

Oscillators Part Context

This part belongs to Abracon's Pure Silicon ASDMP series, which leverages MEMS technology to replace traditional quartz crystals. The ASDMP series offers improved shock resistance and smaller form factors compared to conventional oscillators. This specific model targets high-frequency applications requiring stable clock sources in dense electronic assemblies.

Oscillators Replacement Considerations

Direct substitutes must match the 148.5 MHz frequency, 25 PPM stability, and LVDS output format. Verify package compatibility with the 6-SMD 2.5x2 mm footprint. Ensure replacement parts support the same -40°C to +85°C temperature range and compatible supply voltages.
