AT-33.8688MAGQ-T

Crystals Overview

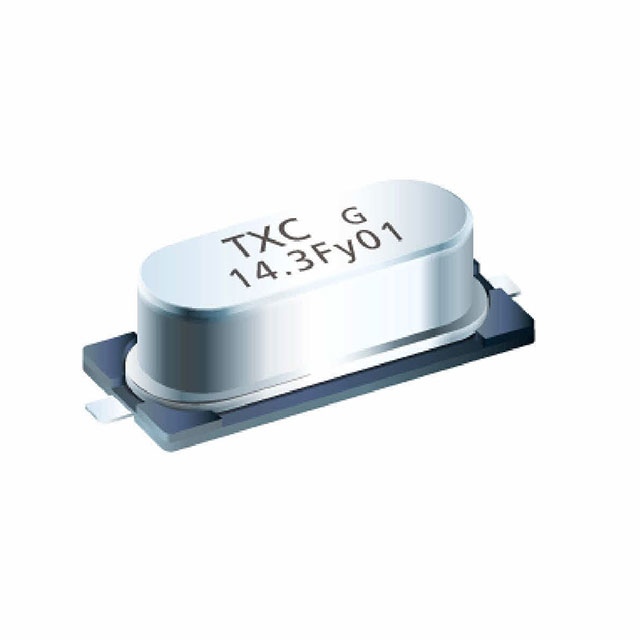

The AT-33.8688MAGQ-T is a MHz crystal manufactured by TXC Corporation, designed for surface mount applications. It operates at a nominal frequency of 33.8688 MHz with a load capacitance of 10 pF. The component features a frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm across the operating temperature range of -40°C to +85°C. It utilizes an HC-49/S package style with SMD/SMT termination type. The device is certified under AEC-Q200 standards, ensuring reliability for automotive grade requirements.

Crystals Feature Summary

• AEC-Q200 certification for automotive grade reliability
• Glass sealing technology for enhanced durability
• Surface mount design in HC-49/S package format

Crystals Applications

• Automotive electronic systems
• Microcontroller clock circuits
• Communication interface timing

Crystals Procurement Notes

Verify current availability status as the product may be subject to discontinuation or limited supply conditions. Confirm that the ordering suffix corresponds to the specific package and tolerance requirements. Ensure compatibility with existing PCB footprints and reflow soldering profiles. Check for any updated datasheet revisions that might affect mechanical dimensions or electrical parameters before finalizing procurement plans.

Crystals Selection Notes

Select this component when a 33.8688 MHz reference signal is required for automotive or industrial applications. The HC-49/S SMD form factor offers a balance between traditional crystal performance and modern surface mount assembly needs. Consider the ±30 ppm tolerance for standard clock generation tasks where high precision is not critical. Verify that the 10 pF load capacitance matches the oscillator circuit design specifications.

Crystals Part Context

This part belongs to the AT series of crystals from TXC Corporation, which are known for their robust construction and wide temperature operation capabilities. The AT series typically employs glass-sealed quartz elements to provide stable frequency output over varying environmental conditions. This specific model represents a transition from through-hole to surface mount packaging while maintaining the electrical characteristics associated with the HC-49/S form factor.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the specific combination of frequency, tolerance, package style, and AEC-Q200 certification, direct replacements must be sourced from official manufacturer cross-reference lists or verified distributors. Ensure any alternative component meets the same electrical and mechanical specifications.
