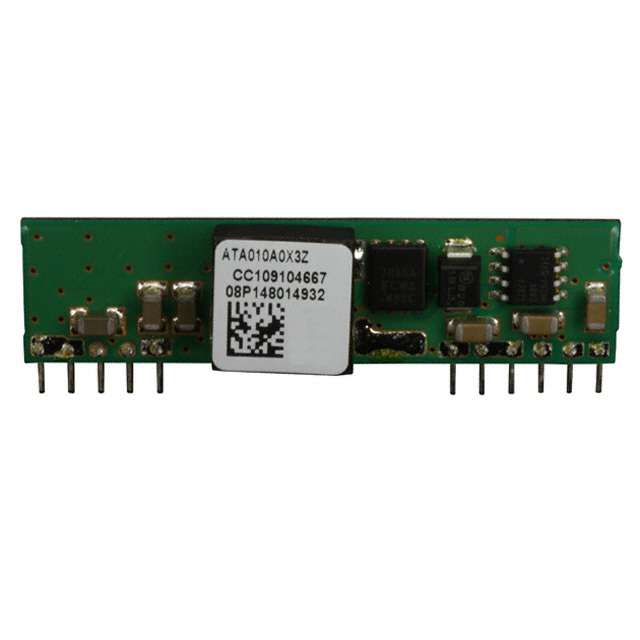

ATA010A0X3Z

ATA010A0X3Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.8-5.5V 55W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ATA010A0X3Z

• Description：DC DC CONVERTER 0.8-5.5V 55W
• Series：Austin Lynx™ II
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8.3V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.8 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：55 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93%
• Mounting Type：Through Hole
• Package / Case：11-SIP Module
• Size / Dimension：2.00" L x 0.32" W x 0.50" H (50.8mm x 8.1mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for ATA010A0X3Z
