ATIFLTE-5717-80

Antennas RF Overview

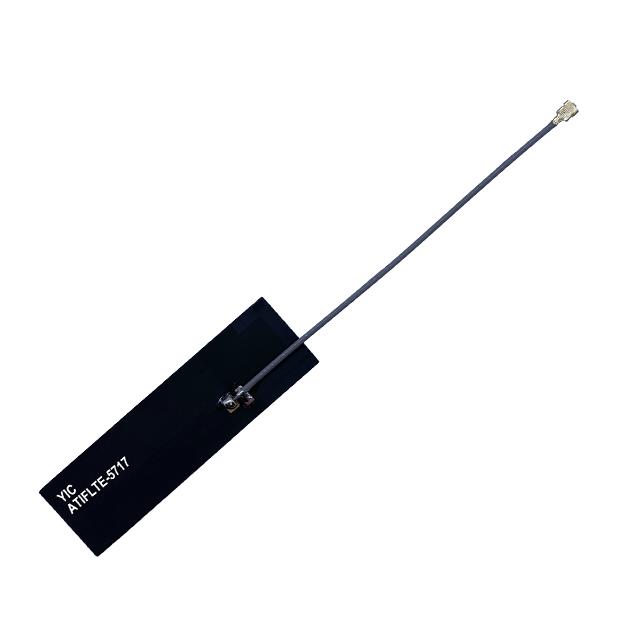

The YIC ATIFLTE-5717-80 is a flexible PCB internal antenna designed for 4G and LTE communication applications. It operates across frequency bands of 650–800 MHz, 810–980 MHz, and 1.71–2.69 GHz. The component features a linear polarization with an antenna gain of 2 dBi. It utilizes an I-PEX connector interface and employs a self-adhesive mounting method for secure attachment to device surfaces. The physical dimensions are 56.59 x 16.53 mm, and it supports an operating temperature range of -40°C to 85°C.

Antennas RF Feature Summary

• Flexible PCB construction suitable for compact internal installations
• Multi-band support for 4G and LTE frequency ranges
• Self-adhesive mounting mechanism for easy integration

Antennas RF Applications

• 4G/LTE mobile devices
• IoT modules requiring internal antennas
• Wireless communication hardware

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to procurement. Confirm that the I-PEX connector type matches the host board design. Ensure the adhesive backing is compatible with the target enclosure material to maintain signal integrity and mechanical stability during operation.

Antennas RF Selection Notes

Select this model when a low-profile, multi-band solution is required for 4G/LTE systems. The flexible form factor allows for placement in constrained spaces where rigid antennas cannot fit. Verify that the 2 dBi gain meets the link budget requirements for the intended application environment.

Antennas RF Part Context

This component belongs to the ATIFLTE series by Yuechung International Corp. (YIC), which specializes in RF antennas for wireless communications. The series includes various models tailored for different frequency bands and mounting styles, providing standardized solutions for modern electronic devices requiring reliable cellular connectivity.

Antennas RF Replacement Considerations

Consult official YIC documentation for direct substitutes within the ATIFLTE series. Ensure any replacement maintains identical frequency coverage, connector type, and mechanical dimensions to preserve system compatibility.
