ATIGGB1840

$3.84

Description：RF ANT GPS/GLONASS/BEIDOU PATCH
Series：ATPGGB
Mfr：YIC
Package：Tray

SKU:c7f745bd8969 Category: RF Antennas Brand: YIC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

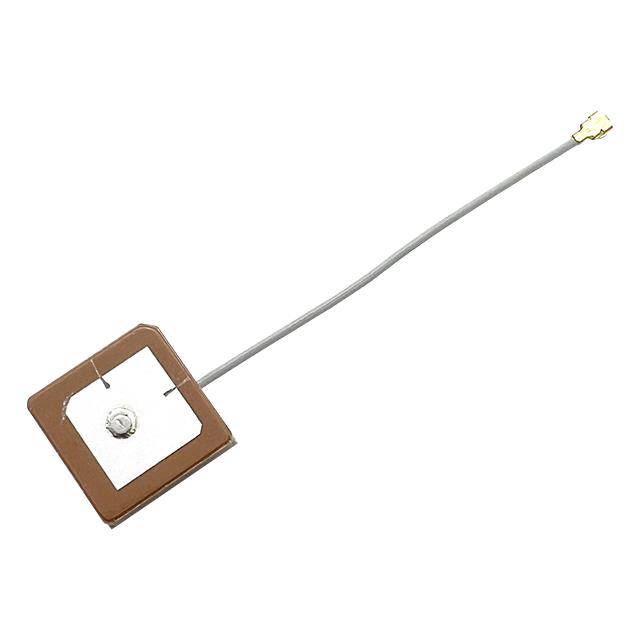

ATIGGB1840 is listed in the Antennas RF range at ChipApex. The manufacturer field lists YIC. Its product description is RF ANT GPS/GLONASS/BEIDOU PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ATIGGB1840

Description：RF ANT GPS/GLONASS/BEIDOU PATCH
Series：ATPGGB
Mfr：YIC
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：1.559GHz ~ 1.563GHz, 1.571GHz ~ 1.576GHz, 1.574GHz ~ 1.579GHz, 1.597GHz ~ 1.607GHz
Antenna Type：Ceramic Patch
Number of Bands：4
VSWR：2
Return Loss：-
Gain：28dBi, 28dBi, 28dBi, 28dBi
Features：Cable - 70mm, LNA
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.295" (7.50mm)
Applications：Beidou, Galileo, GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for ATIGGB1840

ATIGGB1840

Antennas RF Overview

The YIC ATIGGB1840 is a multi-constellation GNSS patch antenna designed for satellite navigation applications. It supports GPS, GLONASS, and BeiDou systems with center frequencies at 1.57542 GHz, 1.602 GHz, and 1.561098 GHz. The component operates within a temperature range of -40°C to +85°C and features a compact height of 7mm. It utilizes an IPEX termination interface and maintains a VSWR of 2. This antenna is engineered to receive weak satellite signals effectively across the specified UHF band.

Antennas RF Feature Summary

Supports multi-constellation reception including GPS, GLONASS, and BeiDou
Optimized for effective reception of weak satellite signals
Compact physical profile suitable for space-constrained designs

Antennas RF Applications

Global Navigation Satellite System (GNSS) receivers
Multi-constellation positioning modules
Satellite navigation tracking devices

Antennas RF Procurement Notes

Verify RoHS3 compliance status and confirm lead times directly with authorized distributors. Ensure IPEX connector compatibility with host PCB layouts. Check operating temperature specifications against environmental requirements before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when multi-constellation support is required for enhanced positioning accuracy. Consider the 7mm height constraint for integration into thin-profile devices. Verify that the IPEX termination matches the system's RF interface requirements.

Antennas RF Part Context

This part belongs to the ATPGGB series of RF antennas manufactured by YIC Electronics. It is categorized as a patch antenna designed for receiving satellite signals in the L-band frequency range. The product is distinct from general-purpose antennas due to its specific tuning for GNSS constellations.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for compatible alternatives if supply constraints exist.
