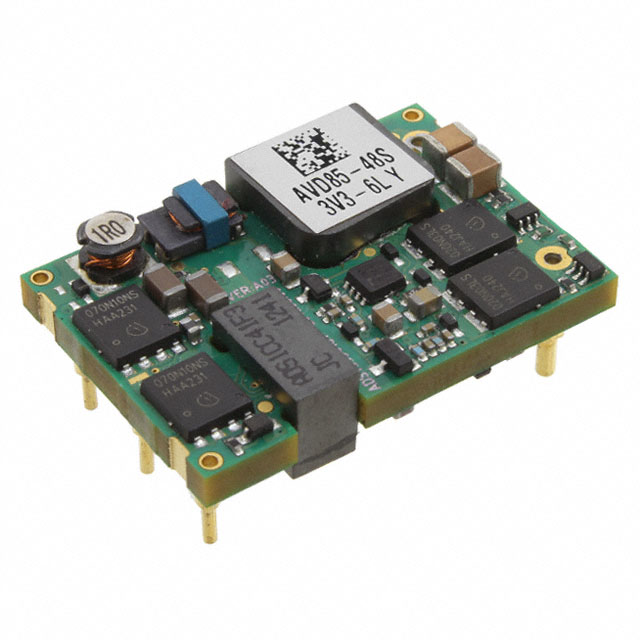

AVD85-48S3V3-6L

AVD85-48S3V3-6L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 3.3V 85W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AVD85-48S3V3-6L

• Description：DC DC CONVERTER 3.3V 85W
• Series：AVD85 (85W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：25A
• Power (Watts)：85 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/16 Brick
• Size / Dimension：1.30" L x 0.90" W x 0.41" H (33.0mm x 22.9mm x 10.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AVD85-48S3V3-6L
