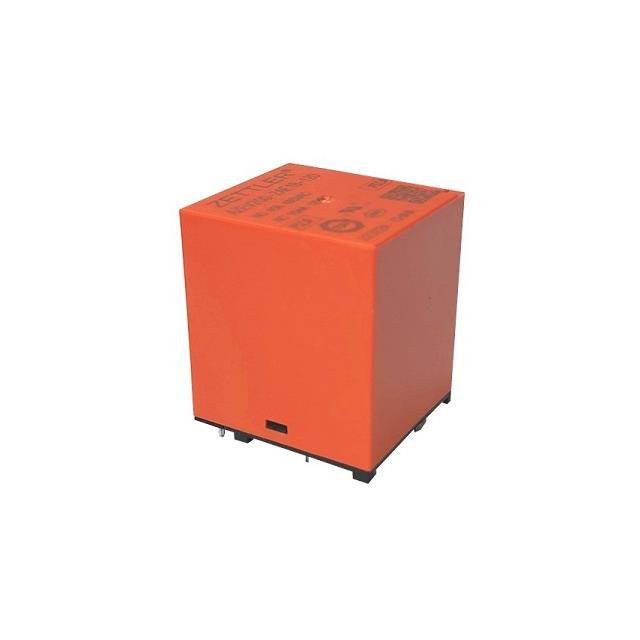

AZEV200-2AE-24D

AZEV200-2AE-24D is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists American Zettler. Its product description is RELAY EV CHARGING DPST 40A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for AZEV200-2AE-24D

• Description：RELAY EV CHARGING DPST 40A 24V
• Series：AZEV200
• Mfr：American Zettler
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：40 A
• Switching Voltage：480VAC - Max
• Load - Max Switching：19200VA
• Coil Current：108 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：18 VDC
• Must Release Voltage：1.2 VDC
• Operating Temperature：-40°C ~ 95°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CQC, cURus, TUV
• Relay Type：EV Charging
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for AZEV200-2AE-24D
