B02B-JWPF-SK-R

Headers, Male Pins Overview

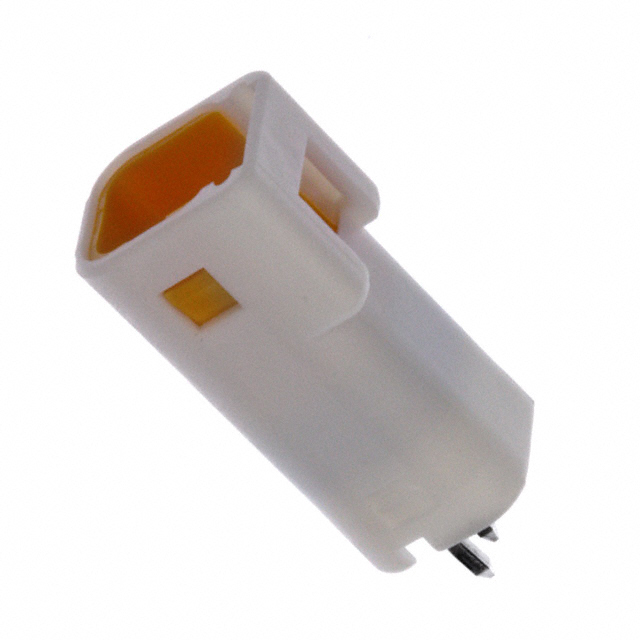

The B02B-JWPF-SK-R is a vertical header connector from the JST JWPF series, manufactured by JST Sales America Inc. It features a 2-position configuration with a 2.00mm pitch and square pin contacts. Designed for through-hole mounting, it utilizes a latch-type housing for secure retention. The connector supports a rated current of 3A and a voltage of 250V, operating within a temperature range of -55°C to 85°C. Insulation is provided by polyamide (PA66), meeting UL94 V-0 flammability standards. Tin plating ensures reliable contact performance.

Headers, Male Pins Feature Summary

• Vertical board-to-wire design with integrated latch mechanism for secure mating
• Square pin contact geometry ensuring stable connection alignment
• Through-hole termination method compatible with standard PCB assembly processes

Headers, Male Pins Applications

• Internal wiring connections in automotive electronic control units
• Connections within battery management systems for electric vehicles
• Signal transmission interfaces in industrial automation equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix 'SK-R' against official JST documentation to confirm reel packaging and tape direction specifications. Ensure compatibility with corresponding JWPF series housings and crimp terminals. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertically oriented header is required for 2-wire connections. The 2.00mm pitch allows for dense circuit board layouts. Consider the latch feature if vibration resistance is critical. Ensure the mating housing and terminal crimping tools are compatible with the JWPF series specifications.

Headers, Male Pins Part Context

This part belongs to the JWPF series, which is designed for ultra-small wire-to-board applications. The series is widely used in automotive and consumer electronics where space constraints are significant. The B02B variant specifically addresses needs for minimal two-channel interconnections within compact assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 2-position, 2.00mm pitch vertical headers with latch mechanisms from JST or compatible third-party manufacturers. Verify that mechanical dimensions, electrical ratings, and material certifications match the original specification before substitution.
