B24P-W

Antennas RF Overview

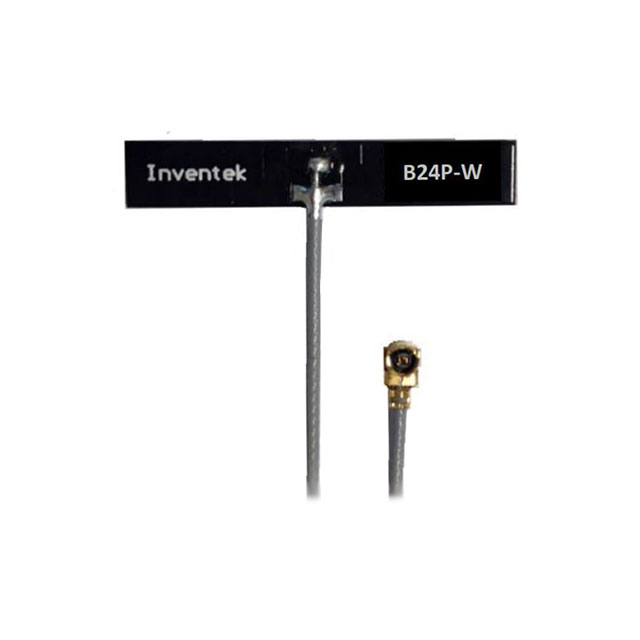

The B24P-W is a 2.4GHz RF antenna designed for Inventek Systems modules, specifically the ISM14585-L35-P8. It operates within the 2.4GHz to 2.5GHz frequency range with a center frequency of 2.442GHz. The component features a PCB trace design with adhesive mounting and provides 3.2dBi gain. It utilizes a U.FL connector interface and maintains a VSWR of 2. The unit supports Bluetooth applications and includes a 90mm coaxial cable.

Antennas RF Feature Summary

• Adhesive-backed PCB trace construction for secure attachment
• Integrated 90mm coaxial cable terminating in a U.FL connector
• Optimized for 2.4GHz Bluetooth and WLAN signal transmission

Antennas RF Applications

• ISM14585-L35-P8 module integration
• Bluetooth device connectivity
• WLAN embedded systems

Antennas RF Procurement Notes

Verify compatibility with the target Inventek module before procurement. Confirm that the U.FL connector type matches the host device interface requirements. Ensure the adhesive mounting method aligns with the mechanical design constraints of the final assembly. Check for specific environmental ratings if the application involves extreme temperatures or humidity.

Antennas RF Selection Notes

Select this antenna when using the ISM14585-L35-P8 module requires an external connection solution. The integrated cable length simplifies routing within compact enclosures. Consider the adhesive mounting profile against available surface area. This component is suitable for designs prioritizing low-profile integration with reliable 2.4GHz performance.

Antennas RF Part Context

This antenna belongs to the Inventek Systems accessory portfolio, engineered to complement their wireless communication modules. It serves as a dedicated peripheral for enhancing radio frequency connectivity in embedded devices. The design focuses on seamless integration with existing Inventek hardware ecosystems.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available.
