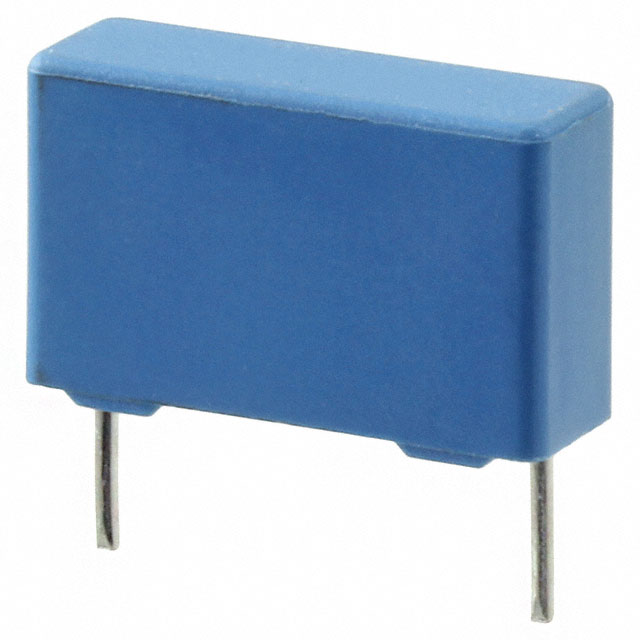

B32642B0223J

B32642B0223J is listed in the Film Capacitors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is CAP FILM 0.022UF 5% 1KVDC RADIAL. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for B32642B0223J

• Description：CAP FILM 0.022UF 5% 1KVDC RADIAL
• Series：B3264* - MMKP High Frequency
• Mfr：EPCOS - TDK Electronics
• Package：Bulk
• Capacitance：0.022 µF
• Tolerance：±5%
• Voltage Rating - AC：600V
• Voltage Rating - DC：1000V (1kV)
• Dielectric Material：Polypropylene (PP), Metallized
• Operating Temperature：-55°C ~ 100°C
• Mounting Type：Through Hole
• Package / Case：Radial
• Size / Dimension：0.709" L x 0.236" W (18.00mm x 6.00mm)
• Height - Seated (Max)：0.433" (11.00mm)
• Termination：PC Pins
• Lead Spacing：0.591" (15.00mm)
• Applications：DC Link, DC Filtering; High Frequency, Switching
• Ratings：AEC-Q200
• Features：-
• ESR (Equivalent Series Resistance)：-

Film Capacitors datasheet and documents for B32642B0223J
