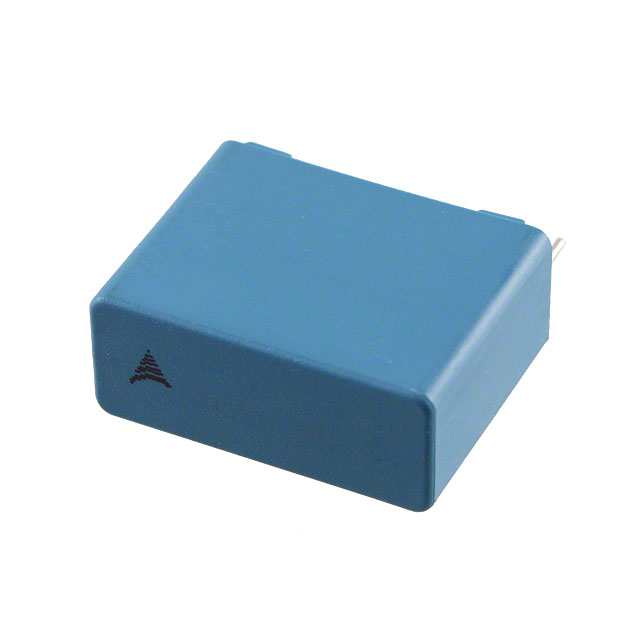

B32653A7104K000

B32653A7104K000 is listed in the Film Capacitors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is CAP FILM 0.1UF 10% 1.25KVDC RAD. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for B32653A7104K000

• Description：CAP FILM 0.1UF 10% 1.25KVDC RAD
• Series：B3265* - MKP General Purpose
• Mfr：EPCOS - TDK Electronics
• Package：Bulk
• Capacitance：0.1 µF
• Tolerance：±10%
• Voltage Rating - AC：500V
• Voltage Rating - DC：1250V (1.25kV)
• Dielectric Material：Polypropylene (PP), Metallized
• Operating Temperature：-55°C ~ 100°C
• Mounting Type：Through Hole
• Package / Case：Radial
• Size / Dimension：1.043" L x 0.433" W (26.50mm x 11.00mm)
• Height - Seated (Max)：0.807" (20.50mm)
• Termination：PC Pins
• Lead Spacing：0.886" (22.50mm)
• Applications：DC Link, DC Filtering; High Pulse, DV/DT
• Ratings：-
• Features：-
• ESR (Equivalent Series Resistance)：-

Film Capacitors datasheet and documents for B32653A7104K000
