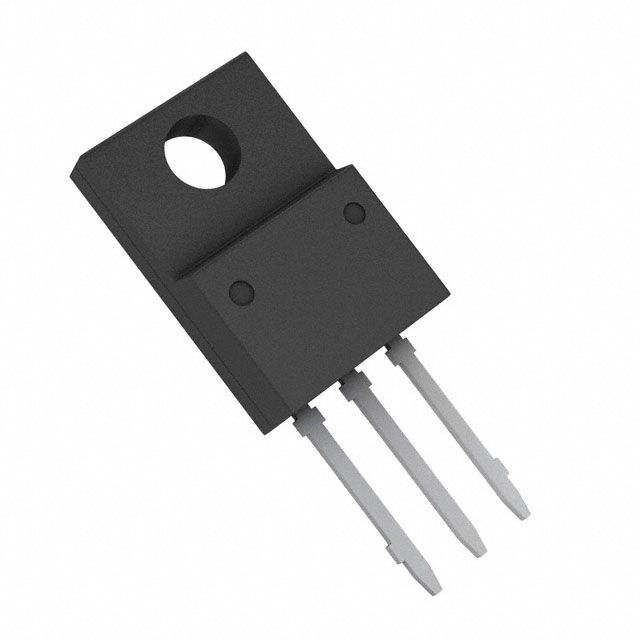

BA17806CP-E2

$1.30

Description：IC REG LINEAR 6V 1A TO220CP-3
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:21ad17a5a32d Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BA17806CP-E2 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is IC REG LINEAR 6V 1A TO220CP-3. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for BA17806CP-E2

Description：IC REG LINEAR 6V 1A TO220CP-3
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：21V
Voltage - Output (Min/Fixed)：6V
Voltage - Output (Max)：-
Voltage Dropout (Max)：2V @ 1A (Typ)
Current - Output：1A
Current - Quiescent (Iq)：4.5 mA
Current - Supply (Max)：6 mA
PSRR：73dB (120Hz)
Control Features：-
Protection Features：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Through Hole
Package / Case：TO-220-3 Cropped Leads
Supplier Device Package：TO-220CP-3
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for BA17806CP-E2

BA17806CP-E2

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The BA17806CP-E2 is a linear voltage regulator from the BA178 series by ROHM Semiconductor, providing a fixed 6V output with a maximum current of 1A. It operates within an input voltage range of 9.5V to 22V and withstands up to 35V. The device features thermal shutdown and overcurrent protection, ensuring reliability under fault conditions. It is housed in a TO-220CP-3 through-hole package and supports an operating temperature range from -40°C to +85°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Integrated thermal shutdown circuit for overheating protection
Built-in overcurrent protection circuitry
Good ripple rejection characteristics

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

General purpose power supply circuits
Embedded system voltage regulation
Industrial control equipment power stages

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify component authenticity against official ROHM documentation due to end-of-life status. Confirm package integrity and pin alignment for TO-220CP-3 mounting. Check for RoHS compliance markers on physical units. Ensure storage conditions maintain lead solderability prior to assembly.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring a stable 6V rail at 1A with robust internal protection. The TO-220CP-3 package suits high-power dissipation needs compared to smaller surface-mount alternatives. Verify input voltage headroom exceeds 9.5V to ensure proper regulation without dropout.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the BA178 series of three-terminal positive linear regulators. It shares functional similarities with other industry-standard 78xx series devices but offers specific protection features defined by ROHM. The series is designed for general-purpose use in various electronic systems requiring reliable voltage stabilization.
