BB-AO-ALTE-MG9S-F

Antennas RF Overview

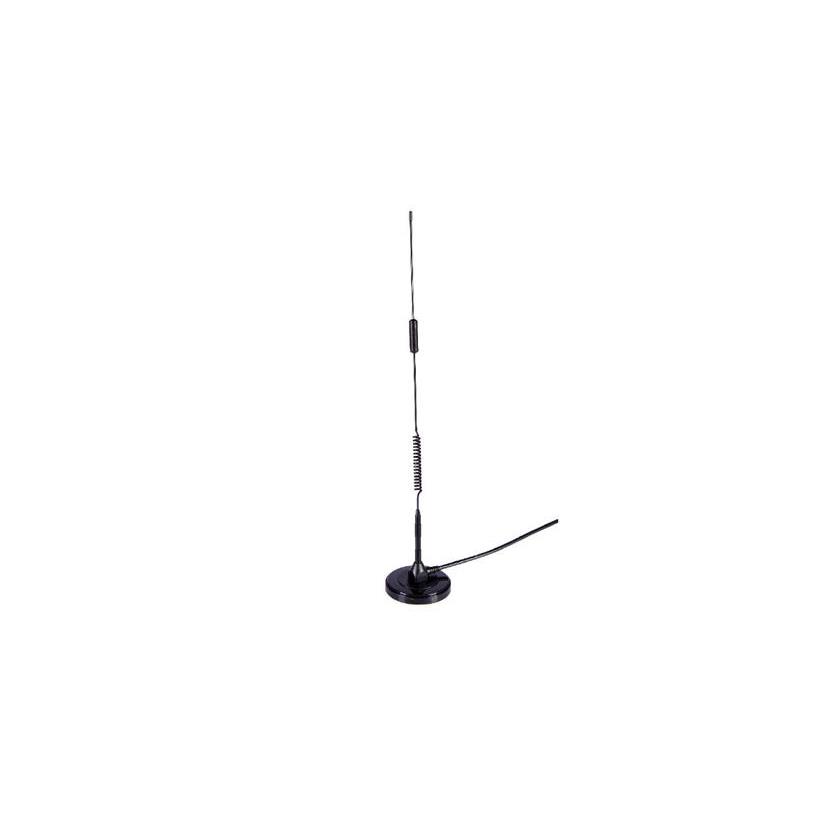

The Advantech BB-AO-ALTE-MG9S-F is a GSM/UMTS/LTE antenna designed for mobile connectivity applications. It features a magnetic base for flexible installation and utilizes an SMA male connector. The unit provides a gain of 7 to 9 dBi with low VSWR characteristics. It includes a thin, flexible RG195/U cable measuring 3 meters in length. The antenna supports multiple frequency bands including 700, 800, 900, 1700, 1800, 1900, 2100, 2500, 2600, and 2700 MHz.

Antennas RF Feature Summary

• Magnetic base design enables easy and tool-free mounting on metallic surfaces
• Low VSWR performance ensures efficient signal transmission across supported bands
• Thin and flexible RG195/U cable facilitates routing in confined spaces

Antennas RF Applications

• Mobile data terminals requiring GSM/UMTS/LTE connectivity
• Industrial IoT gateways and routers
• Vehicle-mounted communication systems

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required cable length and connector type. Confirm RoHS3 compliance status if environmental regulations apply to your deployment. Ensure the SMA male interface is compatible with the receiving equipment port. Check that the magnetic base strength meets the installation surface requirements.

Antennas RF Selection Notes

Select this model when a compact, magnetically mountable solution is required for cellular connectivity. The 3-meter cable length offers flexibility for remote placement from the host device. Consider the 7-9 dBi gain profile for standard range coverage needs. Verify compatibility with the target network frequencies before integration.

Antennas RF Part Context

This component belongs to Advantech's industrial wireless connectivity portfolio. It complements other Advantech antennas like the BB-2J7050BGFA-150 for MIMO applications. The product line focuses on reliable edge intelligence solutions for demanding environments.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate direct replacements based on identical electrical parameters and mechanical form factors.
