BF100-28-A-C-0-0625-N-D

Headers, Receptacles, Female Sockets Overview

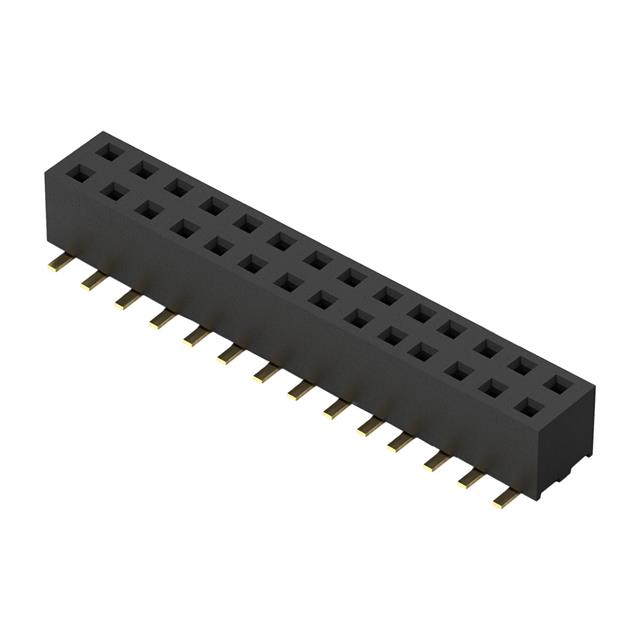

The GCT BF100-28-A-C-0-0625-N-D is a 28-position board-to-board receptacle connector from the BF100 series. It features a 2.00mm pitch and utilizes a dual in-line (DIL) configuration with two rows of contacts. Designed for surface mount technology, this socket employs a push-pull fastening mechanism to secure mating connections. The contacts are constructed from phosphor bronze with gold plating, rated for 2A per contact at 250VAC/DC. The housing is made of black liquid crystal polymer (LCP), offering UL94 V-0 flammability rating and operation within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull locking mechanism ensures secure board-to-board attachment
• Dual row DIL layout accommodates 28 positions on a 2.00mm pitch
• Gold-plated phosphor bronze contacts support high reliability
• Surface mount design integrates seamlessly into automated assembly

Headers, Receptacles, Female Sockets Applications

• High-density electronic module interconnections
• Server and storage system backplane assemblies
• Industrial control unit circuit board linking
• Telecommunications equipment internal signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific ordering suffix matches the required pin count and termination style. Confirm compatibility with mating header components regarding pitch and height. Ensure storage conditions maintain integrity of the gold plating and LCP insulation before installation. Cross-reference the manufacturer datasheet for precise reflow soldering profiles to prevent thermal damage during assembly processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a robust mechanical lock is required for heavy or vibration-prone applications. The 2.00mm pitch allows for higher density compared to standard 2.54mm connectors while maintaining adequate spacing. Consider the push-pull feature if frequent disassembly or secure retention is necessary. Evaluate the operating temperature range against environmental constraints to ensure long-term stability.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the GCT BF100 series, which specializes in board-to-board and mezzanine connectivity solutions. The series offers various pin counts and configurations to suit different space constraints. The BF100 line is engineered for high-performance applications requiring reliable electrical transmission and mechanical durability in compact form factors.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 28-pin count, 2.00mm pitch, and push-pull locking mechanism. Verify identical mounting style and voltage ratings. Consult manufacturer cross-reference lists for equivalent parts with compatible mechanical dimensions and electrical specifications.
