BMHO69027002NF

$50.01

Description：RF ANT 825MHZ WHIP N TYP F POLE
Series：-
Mfr：Amphenol PCTEL
Package：Box

SKU:f846dd5a763f Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BMHO69027002NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 825MHZ WHIP N TYP F POLE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BMHO69027002NF

Description：RF ANT 825MHZ WHIP N TYP F POLE
Series：-
Mfr：Amphenol PCTEL
Package：Box
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：825MHz, 2.2GHz
Frequency Range：690MHz ~ 960MHz, 1.7GHz ~ 2.7GHz
Antenna Type：Whip, Straight
Number of Bands：2
VSWR：2.5
Return Loss：-
Gain：2dBi, 2dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Pole Mount
Height (Max)：9.000" (228.60mm)
Applications：2G, 3G, 5G, Cellular, LTE
Power - Max：25 W

Antennas RF datasheet and documents for BMHO69027002NF

BMHO69027002NF

Antennas RF Overview

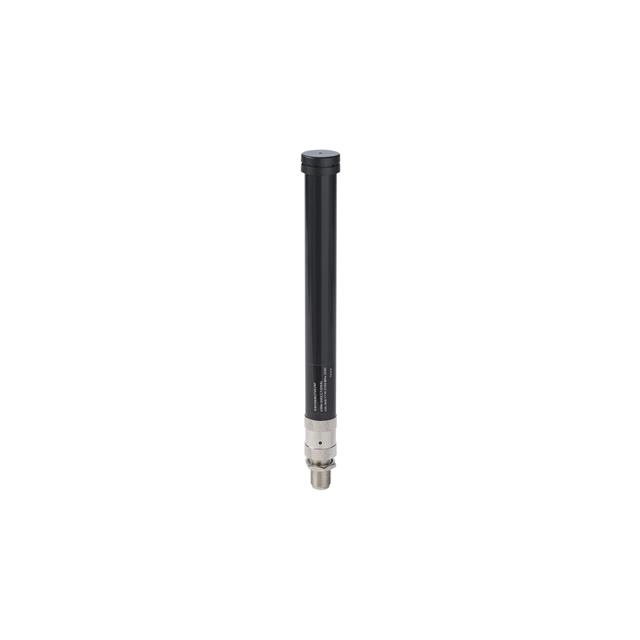

The BMHO69027002NF is a broadband omnidirectional whip antenna manufactured by Amphenol PCTEL. It features an N-type female connector for pole mounting and supports LTE, Cellular, 3G, 4G, and 5G frequencies. The unit is designed for base station applications requiring wideband coverage across multiple wireless standards.

Antennas RF Feature Summary

Supports multiple wireless protocols including LTE, Cellular, 3G, 4G, and 5G
Omnidirectional radiation pattern for consistent signal coverage
N-type female connector interface for secure attachment

Antennas RF Applications

LTE base station installations
Cellular network infrastructure
Multi-standard wireless communication systems

Antennas RF Procurement Notes

Verify the specific frequency range and gain specifications against the official manufacturer datasheet to ensure compatibility with your system requirements. Confirm that the N-type female connector matches your existing cabling and mounting hardware before finalizing the order.

Antennas RF Selection Notes

Select this model when a single antenna solution is required to cover diverse cellular and LTE bands. The N-type female interface provides a standard connection method for robust outdoor or indoor base station deployments.

Antennas RF Part Context

This component belongs to the Amphenol PCTEL portfolio of RF antennas and testing solutions. The brand specializes in providing coverage for Wi-Fi, Bluetooth, and various cellular technologies for base station environments.
