BOA90211

Antennas RF Overview

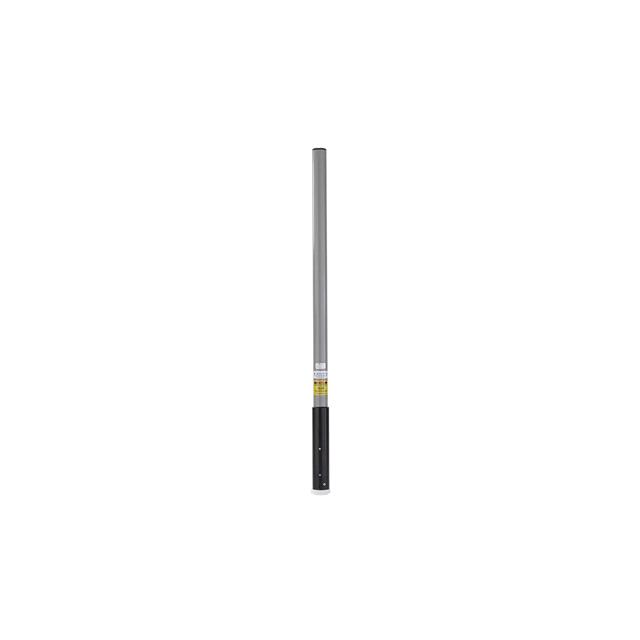

The BOA90211 is an omnidirectional base station antenna manufactured by Amphenol PCTEL. It operates within the UHF frequency group, specifically centered at 915MHz with a bandwidth of 24 MHz covering the 902-928 MHz range. The component provides a gain of 9 dBd and supports a maximum power handling capacity of 250 watts. It features a heavy-duty fiberglass radome construction with a black hard coat anodized finish. The antenna includes electrical downtilt of 0 degrees and utilizes an N-type female connector for mast mounting applications.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for base station coverage
• Heavy-duty fiberglass radome construction for environmental durability
• UV-stable gray fiberglass material ensuring long-term outdoor performance
• Versatile mounting brackets included for flexible installation

Antennas RF Applications

• ISM band communication systems
• LoRa network deployments
• LPWAN infrastructure
• Harsh environment base station setups

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required connector types and mounting configurations. Confirm that the active product status aligns with current supply chain availability. Cross-reference the datasheet specifications against project requirements for frequency, gain, and power handling to prevent integration errors during procurement.

Antennas RF Selection Notes

Select this model for applications requiring robust omnidirectional coverage in the 902-928 MHz range. Consider the 9 dBd gain and 250-watt power rating for high-performance base station needs. Evaluate the heavy-duty fiberglass construction for suitability in harsh or UV-exposed environments where standard antennas may degrade over time.

Antennas RF Part Context

This component belongs to the BOA series of omnidirectional base station antennas from Amphenol PCTEL. The series offers various designs and orientations tailored for different frequency ranges. PCTEL, now part of Amphenol, specializes in antenna and network testing solutions, providing rugged wireless technology components for global infrastructure.

Antennas RF Replacement Considerations

Consult official Amphenol PCTEL documentation for direct substitute part numbers within the BOA series. Verify frequency alignment and connector type compatibility when evaluating alternatives. No public confirmed substitute part numbers are listed in available sources.
