BSA45C

Antennas RF Overview

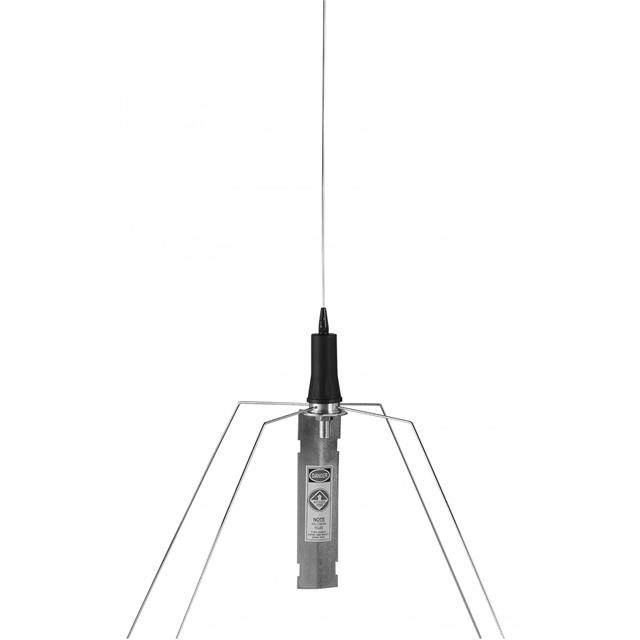

The BSA45C is a base station antenna manufactured by Pulse Electronics, designed for operation within the 45 MHz to 50 MHz frequency range. It features an omni-directional radiation pattern with a gain of 2 dBi and supports a maximum power handling capacity of 200 W. The unit utilizes a straight whip configuration equipped with an N-type female connector. Constructed for both indoor and outdoor deployment, it offers linear polarization and complies with RoHS-6 standards.

Antennas RF Feature Summary

• Omni-directional radiation pattern suitable for broad coverage applications
• Straight whip design with N-type female connector interface
• Linear polarization optimized for specific signal alignment
• RoHS-6 compliant construction for environmental safety

Antennas RF Applications

• Base station communication systems
• Indoor wireless network infrastructure
• Outdoor radio frequency transmission setups

Antennas RF Procurement Notes

Verify the specific datasheet version (e.g., W712) when sourcing components from Pulse Electronics or authorized distributors. Confirm that the N-type female connector matches system requirements. Ensure compliance with local regulatory standards for the 45-50 MHz band before installation. Cross-reference part numbers to distinguish between similar radial whip variants in the product catalog.

Antennas RF Selection Notes

Select this component for applications requiring a 200 W power rating and 2 dBi gain in the 45-50 MHz spectrum. Consider the straight whip form factor for space-constrained installations where vertical orientation is preferred. Evaluate environmental durability for mixed indoor/outdoor usage scenarios. Verify connector compatibility with existing feed lines prior to integration into the network architecture.

Antennas RF Part Context

This antenna belongs to the radial base station whip series offered by Pulse Electronics. It serves as a specialized RF component for fixed communication nodes operating in high-frequency bands. The design prioritizes structural integrity and consistent signal distribution across the specified frequency range for reliable network performance.

Antennas RF Replacement Considerations

Consult the official Pulse Electronics catalog for direct substitutes. Verify that alternative models maintain identical frequency ranges, power ratings, and connector types to ensure seamless system integration without modification.

Antennas RF FAQ

What is the polarization type of the BSA45C antenna?

The BSA45C utilizes linear polarization.

Is the BSA45C suitable for outdoor environments?

Yes, the component is rated for both indoor and outdoor use.
